What is Carbon Fiber Parts?
Carbon fiber parts are advanced composite components manufactured from carbon fiber-reinforced polymers (CFRP), offering an outstanding combination of high tensile strength, low weight, excellent stiffness, and superior resistance to fatigue, chemicals, and temperature extremes. Engineered for demanding applications, these parts are widely utilized in aerospace, automotive, marine, industrial machinery, and high-performance sports equipment, where material performance, structural integrity, and weight reduction are mission-critical. Let’s take a look at how is carbon fiber part made at Alizn factory.
Choosing the Right Production Line for Your Carbon Fiber Parts
Understanding how is carbon fiber part made is not only about the process itself but also about choosing the right production method. The ideal line depends on the application, volume, part geometry, and required performance.
Carbon Fiber Composite Production Line Comparison Table
| Production Line Type | Core Process | Key Features | Suitable Customer Scenarios | Example Applications |
|---|---|---|---|---|
| Hand Lay-up + Vacuum Bagging Line | Manual lay-up + vacuum bag-assisted compaction | Low investment, flexible process, suitable for diversified structures | Start-ups, projects with high customization needs, small batch high-complexity product development | Drone shells, yacht components, carbon fiber musical instrument bodies, personalized automotive parts |
| RTM (Resin Transfer Molding) Line | Dry fiber lay-up + in-mold resin injection molding | Medium automation, good repeatability, high mold utilization | Customers requiring dimensional consistency, good surface quality, and medium-volume structural part production | Carbon fiber car doors, structural panels, rail vehicle interior parts, seat frames |
| Autoclave Line | Prepreg lay-up + vacuum bag + high temperature & pressure curing | Ultimate performance and precision, high equipment investment | Used for ultra-lightweight and high-strength structural parts in high-end applications such as aerospace and motorsports | Aircraft wings, engine parts, F1 car chassis, satellite structural components |
| Filament Winding Line | Continuous fiber impregnated and automatically wound into shape | High automation, ideal for symmetrical hollow parts in continuous mass production | Customers needing large-scale production of cylindrical or shell structures such as tanks, vessels, and pressure containers | High-pressure gas cylinders, hydrogen tanks, composite pressure vessels, rocket casings |
| SMC/BMC Line (Sheet/Bulk Molding Compound) | Short fiber sheet or bulk pressed into mold | Low cost, fast cycle time, suitable for mass production | Suitable for large-volume, low-to-mid strength structural parts with standardized molds (e.g. automotive and household applications) | Car hoods, bumpers, dashboard shells, electrical housings, sink bases |
| Pultrusion Line | Continuous fibers pulled through a heated mold and cured | High automation, consistent cross-sections, fast production speed | Customers needing linear, batch-produced products with stable performance, such as in construction or power infrastructure | Cable trays, ladders, wind turbine blade beams, carbon fiber channels, bridge tendons |
| 3D Printing Line | Additive manufacturing + layer-by-layer deposition of continuous/short carbon fiber reinforced materials | No molds, design flexibility, ideal for complex, low-volume parts | Suitable for applications requiring high design freedom, strong customization, and rapid prototyping or small-batch production | Carbon fiber orthopedic braces, drone components, lightweight structures, custom housing units |
Carbon Fiber Parts Cost Assessment
- Production Difficulty: ★★★★★ = Most difficult, ★ = Easiest
- Customization Cost: ★★★★★ = Highest cost, ★ = Lowest cost
- Surface Finish Quality: ★★★★★ = Most aesthetically pleasing, ★ = Average
- Precision Requirement: ★★★★★ = Strongest dimensional control, ★ = Lowest precision
- Production Time: ★★★★★ = Shortest time, ★ = Longest time
| Production Line Type | Production Difficulty | Small-Batch Custom Cost | Medium-Scale Wholesale Cost | Mass Production Cost | Surface Aesthetic Quality | Precision Requirement | Production Time |
|---|---|---|---|---|---|---|---|
| Hand Layup + Vacuum Bag Line | ★★★ | ★★ | ★★★ | ★★★★ | ★★★ | ★★★ | ★★ |
| RTM Production Line | ★★★ | ★★★ | ★★ | ★★★ | ★★★★ | ★★★★ | ★★★ |
| Autoclave Production Line | ★★★★ | ★★★★★ | ★★★★ | ★★★★ | ★★★★★ | ★★★★★ | ★ |
| Filament Winding Line | ★★★ | ★★★★ | ★★★ | ★★ | ★★★ | ★★★★ | ★★★★ |
| SMC/BMC Production Line | ★★ | ★★★★ | ★★ | ★ | ★★★★ | ★★★ | ★★★★★ |
| Pultrusion Molding Line | ★★ | ★★★★ | ★★ | ★ | ★★★ | ★★★★ | ★★★★★ |
| 3D Printing Production Line | ★★★★ | ★★★ | ★★★★ | ★★★★★ | ★★★ | ★★★★ | ★★ |
The following is an evaluation comparison table for seven types of carbon fiber composite production lines based on a general scenario.
The production time is based on the complete production cycle of typical products (e.g., automotive interior/exterior parts, drone shells, industrial profiles).
Manufacturing Processes for Carbon Fiber Parts
1. Hand Lay-up + Vacuum Bagging Production Line
Introduction
The hand lay-up and vacuum bagging process is a flexible, cost-effective method ideal for small-batch, customized carbon fiber parts with complex geometries, suitable for industries like aerospace, automotive, and custom products. It relies on manual labor for precision and uses vacuum bagging to improve consolidation and surface quality.
Process Flow
- Material Preparation: Cut carbon fiber fabric to the required shape.
- Lay-up: Manually place dry or prepreg carbon fiber plies onto a mold, applying resin between layers for wet lay-up.
- Vacuum Bagging: Cover the lay-up with a vacuum bag, peel ply, and breather cloth, then apply vacuum pressure to remove air and excess resin.
- Curing: Cure in an oven or at room temperature to harden the resin.
- Demolding and Finishing: Remove the part from the mold, trim, and perform surface finishing as needed.
One-Sentence Summary: A manual process where carbon fiber is hand-laid onto a mold and vacuum-bagged for enhanced consolidation, ideal for custom, small-batch parts.
Learn More: For detailed information, visit Carbon Fiber Hand Layup Line.
2. RTM (Resin Transfer Molding) Production Line
Introduction
Resin Transfer Molding (RTM) is a semi-automated process using a closed mold to produce high-quality carbon fiber parts with consistent dimensions and good surface finish, suitable for medium-volume production in automotive and aerospace applications.
Process Flow
- Preform Preparation: Place dry carbon fiber fabric into a two-part mold.
- Mold Closure: Seal the mold to create a closed cavity.
- Resin Injection: Inject resin into the mold under pressure to impregnate the fibers.
- Curing: Cure the part in the mold, often with heat, to solidify the resin.
- Demolding and Finishing: Remove the part and perform trimming or surface treatment.
One-Sentence Summary: RTM injects resin into a closed mold with dry carbon fiber, producing consistent, high-quality parts for medium-volume applications.
Learn More: For detailed information, visit Carbon Fiber RTM Line.
3. Autoclave Production Line
Introduction
The autoclave process uses high-pressure and high-temperature curing to produce top-quality carbon fiber parts with exceptional strength and precision, primarily for high-performance applications like aerospace and motorsports.
Process Flow
- Prepreg Lay-up: Cut and manually lay prepreg carbon fiber sheets onto a mold.
- Vacuum Bagging: Encase the lay-up in a vacuum bag with breather and peel ply, then apply vacuum to remove air.
- Autoclave Curing: Place the assembly in an autoclave for curing under high pressure (50–200 psi) and temperature.
- Demolding: Remove the cured part from the mold.
- Finishing: Trim and apply surface treatments as required.
One-Sentence Summary: Autoclave molding cures prepreg carbon fiber under high pressure and temperature, yielding superior strength and precision for high-end applications.
Learn More: For detailed information, visit Carbon Fiber Autoclave Line.
4. Filament Winding Production Line
Introduction
Filament winding is an automated process for creating hollow, cylindrical, or prismatic carbon fiber parts like tubes and tanks, offering high strength and precise fiber orientation, ideal for aerospace and energy sectors.
Process Flow
- Fiber Preparation: Load continuous carbon fiber strands onto a winding machine.
- Resin Application: Pass fibers through a resin bath (wet winding) or use prepreg tow.
- Winding: Wind fibers around a rotating mandrel in a controlled pattern.
- Curing: Cure the wound structure in an oven or autoclave.
- Mandrel Removal and Finishing: Extract the mandrel and trim or finish the part.
One-Sentence Summary: Filament winding wraps resin-impregnated carbon fibers around a mandrel to create strong, hollow parts with precise fiber alignment.
Learn More: For detailed information, visit Carbon Fiber Filament Winding Production Line.
5. SMC/BMC (Sheet/Bulk Molding Compound) Production Line
Introduction
SMC/BMC processes use chopped carbon fibers mixed with resin to produce high-volume, cost-effective parts with good surface finish, suitable for automotive and consumer goods applications.
Process Flow
- Material Preparation: Mix chopped carbon fibers with resin to form SMC sheets or BMC dough.
- Mold Loading: Place the material into a heated mold.
- Compression Molding: Apply heat (250–400°F) and high pressure to shape and cure the material.
- Demolding: Remove the cured part from the mold.
- Finishing: Trim and apply surface treatments as needed.
One-Sentence Summary: SMC/BMC uses chopped fiber compounds molded under heat and pressure for cost-effective, high-volume production of durable parts.
Learn More: For detailed information, visit Carbon Fiber SMC/BMC Production Line.
6. Pultrusion Production Line
Introduction
Pultrusion is a highly automated, continuous process for producing constant cross-section carbon fiber profiles like beams and rods, offering low cost and high efficiency for infrastructure and industrial applications.
Process Flow
- Fiber Alignment: Pull continuous carbon fibers through a resin bath.
- Molding: Guide fibers through a heated die to shape and cure the composite.
- Curing: Harden the material as it passes through the heated die.
- Cutting: Cut the continuous profile to desired lengths.
- Finishing: Apply surface treatments if required.
One-Sentence Summary: Pultrusion pulls resin-impregnated carbon fibers through a heated die to produce consistent, cost-effective profiles for large-scale applications.
Learn More: For detailed information, visit Carbon Fiber Pultrusion Production Line.

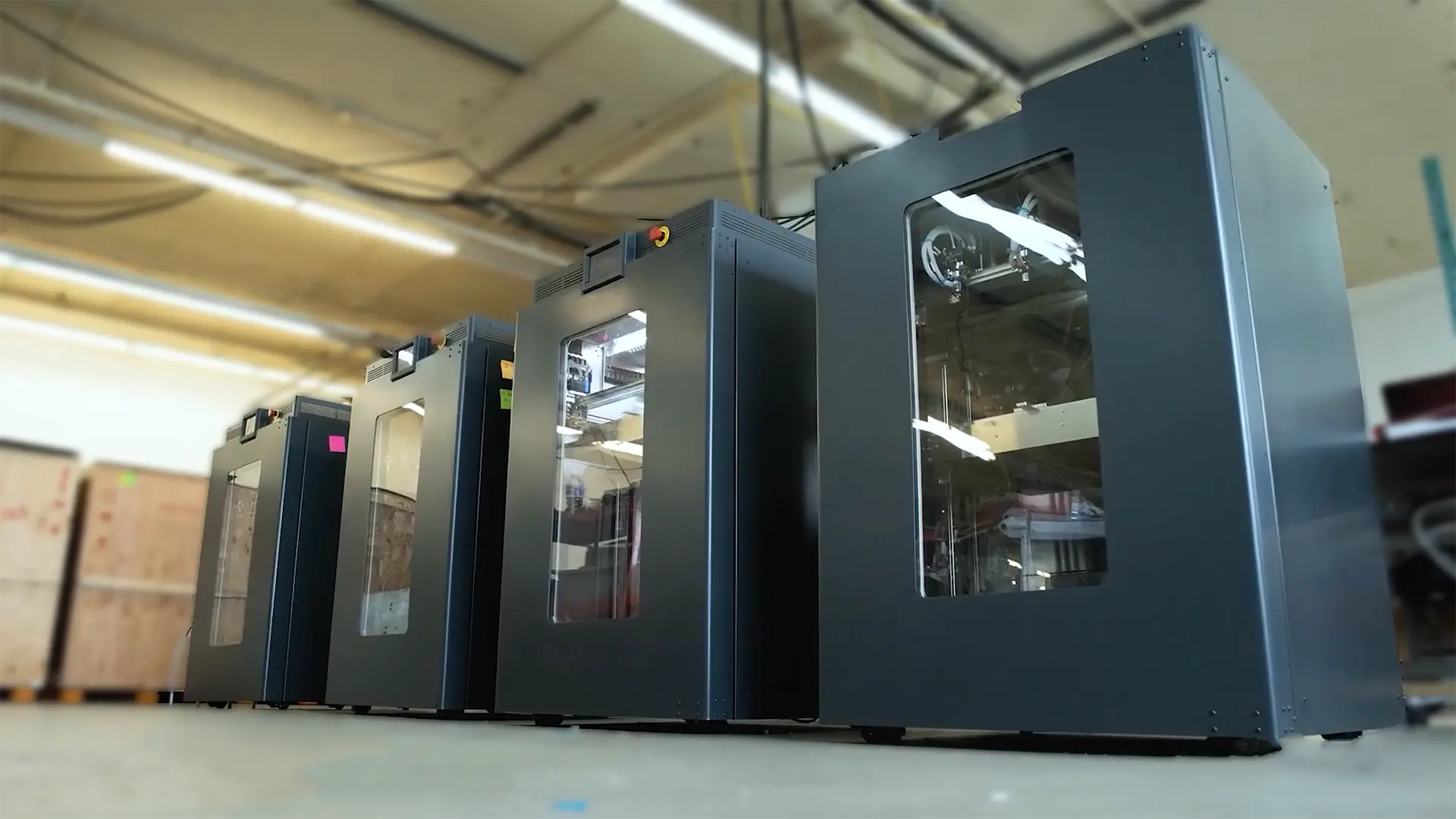

7. 3D Printing Production Line (Additive Manufacturing)
Introduction
3D printing of carbon fiber composites uses additive manufacturing to create complex, customized parts with minimal tooling, ideal for prototyping and small-batch production in aerospace and medical fields.
Process Flow
- Design: Create a 3D model using CAD software.
- Material Preparation: Load carbon fiber-reinforced filament or resin into the 3D printer.
- Printing: Build the part layer by layer, often using continuous or chopped carbon fibers.
- Curing: Cure the printed part (if using resin-based printing) via UV or heat.
- Post-Processing: Remove supports, sand, or apply surface finishing.
One-Sentence Summary: 3D printing builds complex carbon fiber parts layer by layer, offering design flexibility and rapid prototyping without molds.
Learn More: For detailed information, visit Carbon Fiber 3D Printing Production Line.
FAQs about how is carbon fiber part made
Should I choose prepreg or dry fabric for my custom carbon fiber parts?
Prepreg offers precise resin control and higher strength-to-weight ratio, ideal for high-performance parts, while dry fabric with wet lay-up is more cost-effective and flexible for complex shapes. For detailed comparisons, visit Prepreg vs. Dry Fabric for Custom Carbon Fiber Parts.
What’s the difference between dry (prepreg) and wet carbon fiber processes for customization?
Dry (prepreg) uses pre-impregnated fibers cured in an autoclave for superior strength and consistency, while wet involves manual resin application, offering lower cost but less precision. Learn more at Distinguish Dry Prepreg vs. Wet Custom Carbon Fiber Part.
How do I select the right tensile strength and modulus for my custom parts?
Choose high tensile strength (e.g., T1000G) for load-bearing parts or high modulus (e.g., M40J) for stiffness-critical applications like aerospace components. Explore options at How to Choose Tensile Strength and Modulus in Custom Carbon Fiber.
What tow size should I choose for my custom carbon fiber parts?
Smaller tows (e.g., 1K, 3K) offer finer weaves for aesthetic parts, while larger tows (12K, 24K) provide thickness and strength for structural components. Details are available at How to Choose the Right Tow for Custom Carbon Fiber Part.
Should I choose plain or twill weave for my custom carbon fiber parts?
Plain weave (1×1) is tighter and easier to handle but less flexible for complex molds, while twill (2×2) offers better drape and a classic diagonal pattern. Compare weaves at Plain vs. Twill Carbon Fiber Weave in Customization.
Can I customize the color of my carbon fiber parts?
Yes, you can add colored resins, dyes, or coatings to achieve hues like red or blue, though traditional black carbon fiber is most common. Learn about options at Custom Carbon Fiber Parts Color and Appearance.
What finish styles are available for custom carbon fiber parts?
Options include glossy (smooth, shiny), matte (non-reflective), or textured finishes, with glossy being popular for aesthetic parts like automotive trim. Explore styles at Different Styles of Carbon Fiber Finish.
How does the choice of prepreg affect customization costs and quality?
Prepreg ensures consistent quality and higher strength but is costlier due to specialized equipment and storage needs, compared to wet lay-up’s affordability. See more at Prepreg vs. Dry Fabric for Custom Carbon Fiber Parts.
Can I achieve a high-performance part with a specific aesthetic using wet carbon fiber?
Wet carbon fiber is suitable for appearance parts with simpler designs but may have lower strength and consistency compared to prepreg; coatings can enhance aesthetics. Details at Distinguish Dry Prepreg vs. Wet Custom Carbon Fiber Part.
How do I balance performance and appearance in custom carbon fiber parts?
Combine high-strength fibers (e.g., T800S) with twill weave for aesthetics and prepreg for precision, or use wet lay-up with colored coatings for cost-effective visual appeal. Learn more at How to Choose Tensile Strength and Modulus and Custom Carbon Fiber Parts Color and Appearance.
Final Thoughts
As composite material experts, we are willing to provide you with critical assistance. The correct judgment now avoids cost overruns, delays, and disappointing results later.
Need advice on your custom carbon fiber part? Reach out to our team for expert guidance.
