Carbon Fiber Square Tube
Alizn Professional Customization
Custom Carbon Fiber Square Tube Catalog
Alizn custom carbon fiber square tube are carefully crafted using only the finest materials. Our production team offers superior craftsmanship with over 10 years of experience working with custom carbon fiber square tube.
Custom Carbon Fiber Tube Specification
Choose Inner - outer diameters (Pultruded tube)
Alizn offers a wide range of carbon fiber square tube sizes with outer diameters from 2mm to 56mm. Each tube is manufactured using precision molds to ensure excellent roundness ID, uniform wall thickness, and consistent tolerances, making it an ideal choice for OEM manufacturing.
( Note: The table lists Alizn standard products. Please contact us if you need other customized sizes.)

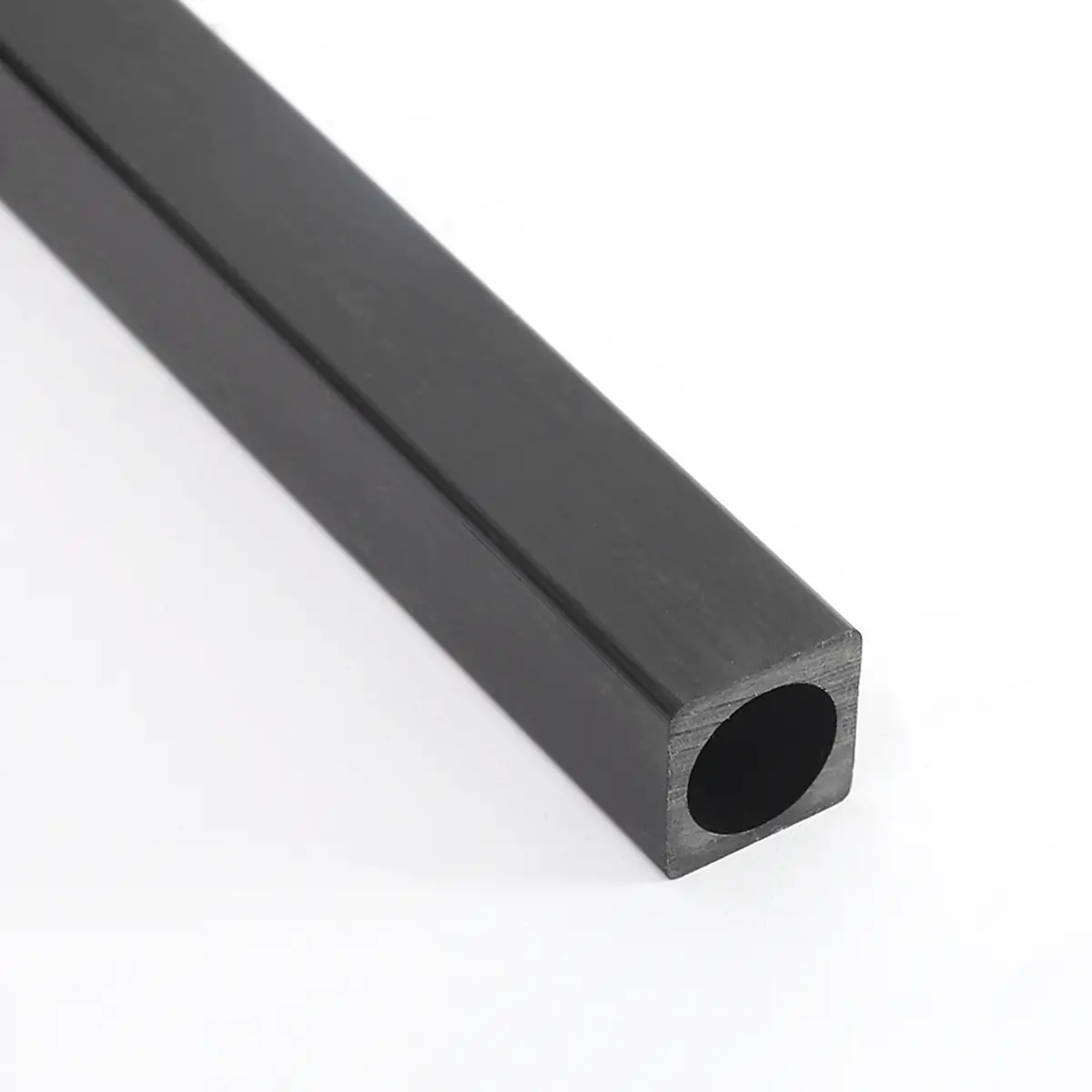

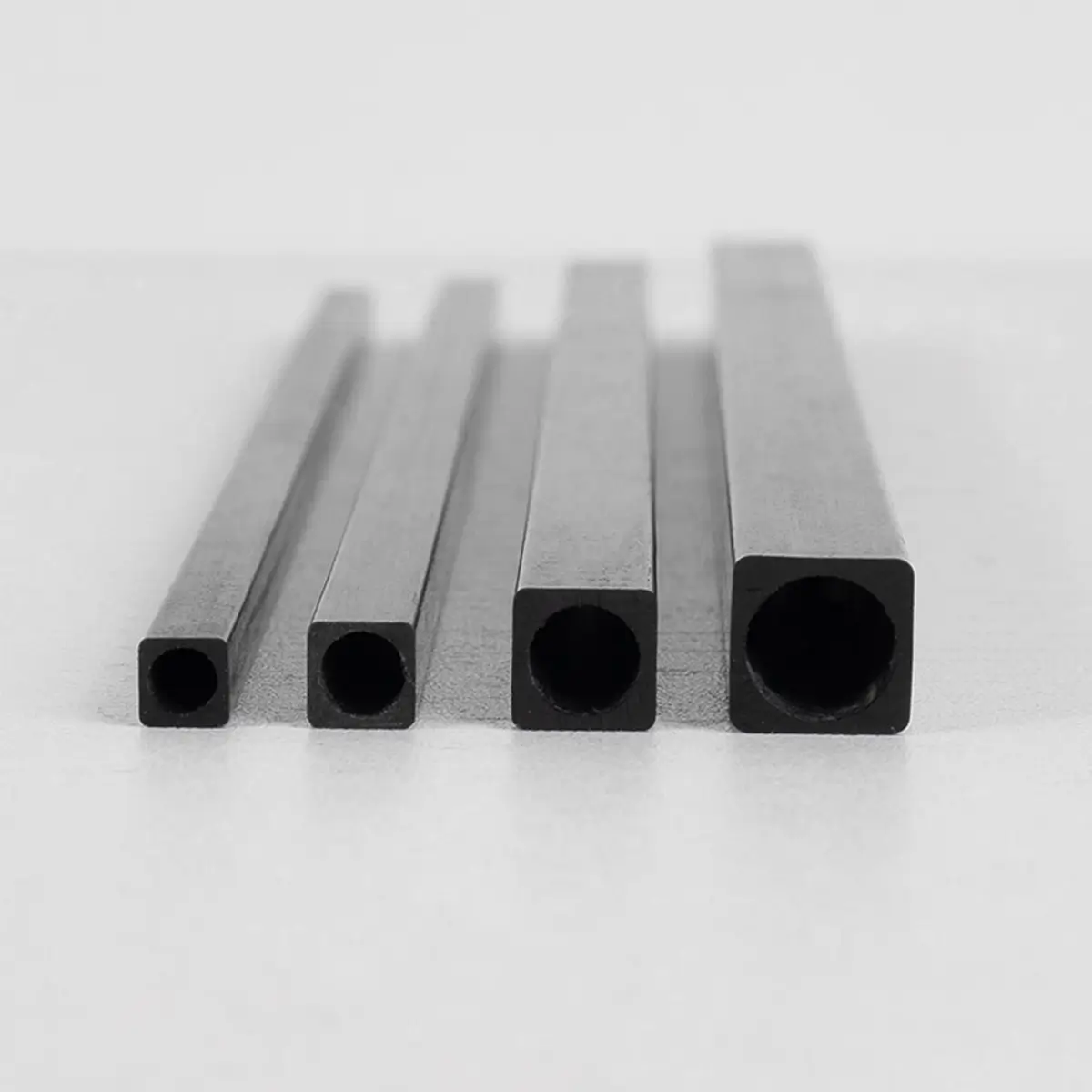

| Square OD (mm) | Round ID (mm) | Square OD (mm) | Square ID (mm) |
|---|---|---|---|
| 1.4*1.4 | 0.8 | 3*3 | 2*3 |
| 1.68*1.68 | 1 | 4*4 | 2*2 |
| 1.7*1.7 | 1 | 4*4 | 3*3 |
| 2*2 | 1 | 5*5 | 2*2 |
| 2.5*2.5 | 1.5 | 5*5 | 3*3 |
| 3*3 | 2 | 5*5 | 4*4 |
| 4*4 | 2 | 6*6 | 2*2 |
| 4*4 | 2.5 | 6*6 | 3*3 |
| 4*4 | 3 | 6*6 | 4*4 |
| 5*5 | 2 | 6*6 | 5*5 |
| 5*5 | 2.5 | 8*8 | 3*3 |
| 5*5 | 3 | 8*8 | 4*4 |
| 5*5 | 3.5 | 8*8 | 5*5 |
| 5*5 | 4 | 8*8 | 6*6 |
| 6*6 | 3 | 8*8 | 6.5*6.5 |
| 6*6 | 3.5 | 10*10 | 8*8 |
| 6*6 | 4 | 10*10 | 8.5*8.5 |
| 6*6 | 4.5 | ||
| 6*6 | 5 | ||
| 8*8 | 3 | ||
| 8*8 | 3.5 | ||
| 8*8 | 4 | ||
| 8*8 | 4.5 | ||
| 8*8 | 5 | ||
| 8*8 | 5.5 | ||
| 8*8 | 6 | ||
| 8*8 | 6.5 | ||
| 10*10 | 4 | ||
| 10*10 | 4.5 | ||
| 10*10 | 5 | ||
| 10*10 | 5.5 | ||
| 10*10 | 6 | ||
| 10*10 | 6.5 | ||
| 10*10 | 7 | ||
| 10*10 | 8 | ||
| 10*10 | 8.5 |
Custom Carbon Fiber Tube Specification
Choose Inner - outer diameters (Prepreg tube)
Alizn offers a wide range of carbon fiber square tube sizes with outer diameters from 2mm to 56mm. Each tube is manufactured using precision molds to ensure excellent roundness ID, uniform wall thickness, and consistent tolerances, making it an ideal choice for OEM manufacturing.
( Note: The table lists Alizn standard products. Please contact us if you need other customized sizes.)
| OD (mm) | ID (mm) |
|---|---|
| 14*14 | 12*12 |
| 15*15 | 12*12 |
| 18*18 | 16*16 |
| 20*20 | 16*16 |
| 20*20 | 18*18 |
| 22*22 | 18*18 |
| 22*22 | 20*20 |
| 25*25 | 20*20 |
| 25*25 | 22*22 |
| 28*28 | 25*25 |
| 30*30 | 25*25 |
| 30*30 | 26*26 |
| 30*30 | 28*28 |
| 35*35 | 32*32 |
| 40*40 | 36*36 |
| 50*50 | 46*46 |
Custom Carbon Fiber Tube Material
Choose weave and filament count (Prepreg tube)
Select custom carbon fiber square tube weave pattern and filament count for optimal strength and performance, with full customization options to meet any specification or requirement
Custom Carbon Fiber Tube Appearance
Choose Finishes (Prepreg tube)
Fabrics & Finishes and Color To Meet Your Needs
Plain Glossy
MODERN
Twill Glossy
CLASSIC
Plain Matte
ELEGANT
Twill Matte
UNDERSTATED
Carbon Fiber Tube Customization Case
Custom Carbon Fiber Tube SHOW
With advanced technology and expert craftsmanship, we create durable, high-performance custom carbon fiber products tailored to each project’s needs. From initial prototypes to large-scale production, we ensure top-quality results and help you achieve your manufacturing goals.
Upload Your CAD File
To begin, provide your contact details and upload the CAD file or specific dimensions of your design. This allows us to create a detailed 3D model of the part or prototype you're looking to carbon fiber square tube.
Receive a Quote & Design Review
Within 12 hours, we’ll send you a detailed quote along with Design for Manufacturability (DFM) feedback. This ensures the feasibility of your project and gives you a clear idea of the costs involved.
Confirm Your Order & Begin Production
Once you approve the quote and design, we’ll proceed with the production of your carbon fiber square tube.
Shipping & Delivery
Your project enters our manufacturing queue the morning after we receive your approval. On average, custom orders ship within 10-15 business days. In-stock products and samples ship within 48 hours.
Just 4 Steps
Custom Carbon Fiber Square Tube Quotation Process
From detailed consultation to final delivery, we make custom parts orders simple and easy. We pride ourselves on providing exceptional customer service by anticipating your needs, offering customized solutions and on-time delivery.
Carbon Fiber Customization Process
From Design to Quality Control
Every Step Tailored to Perfection
Alizn carbon fiber customization process ensures precision, quality, and efficiency at every stage. From innovative design and advanced production to rigorous quality control, we transform your ideas into high-performance solutions. Serving diverse industries, we specialize in creating prototypes and full-scale production, turning your vision into reality with unmatched expertise and attention to detail.
Professional Equipment For Carbon Fiber
The Equipment Behind carbon fiber square tube
Our professional equipment provides complete solutions for carbon fiber square tube customization, ensuring high precision, efficiency, and cost-effectiveness.
From design to production, we meet strict quality standards, addressing complex shapes and performance needs.
Autoclave Moulding
Enhances strength & optimizes durability
Rolling Moulding
exible tube thickness control
Pultrusion Moulding
Continuity & Consistency
Filament Winding Moulding
Achieves high strength-to-weight ratio
Moulding Pressing (RTM)
Enhances strength & optimizes durability
Hand Lay-up Process
Meets custom design requirements
Vacuum Diversion
Increases precision & reduces material waste
CNC Machining
High-precision structures
Industrial oven
Even curing & quality stability
Carbon Fiber Tube Professional Guide
Custom Carbon Fiber Tube Knowledge
Alizn explores with you every factor that influences your choice
design, functionality, durability, brand positioning, price factors, process, customization options
Custom Carbon Fiber Square Tube FAQs
Alizn specialize in precision parts crafted from high-performance custom carbon fiber, ideal for functional tests or end-use applications. Explore our FAQs to discover more about our carbon fiber solutions and related technical support.
ChatGPT 说：
We mainly use 3K resin prepreg bi-directional carbon fiber fabric, but 1K, 6K, and unidirectional options are also available. Material grades include T300, T700, T800, and M-series fibers for varying strength and performance needs.
Plain/twill weave with glossy/matte clear coating. And also we have unidirectional fabric without any weave surface. In additional, we have forged carbon fiber texture weave. You can choose what you want and let us know.
We need 3 details: 1. step/stp/x_t format drawing file; 2. quantity; 3. surface requirement.
Mold time 25-30 days; and sample time 7-10 days;
Yes, we can. But we need samples to scan the dimension or you can provide very detailed dimension to us. We can draft drawing file with surcharge.
Alizn offers moulds that cover almost all standard models of carbon fiber tubes available on the market. If the specific model you need is not available, we can customize a mould first, and then proceed with product manufacturing based on your specifications.
Aluminium mold, steel mold, fiberglass mold and carbon fiber mold, steel mold with high precision since it is hard and produced by machining, so steel mold is the best option. For inside mold, normally with metal mold, or airbag core or silcone core.
Our carbon fiber products can be manufactured according to customer requirements using techniques such as autoclave moulding, filament winding, pultrusion, and rolling moulding to ensure high strength, lightweight structure, and excellent surface quality.
