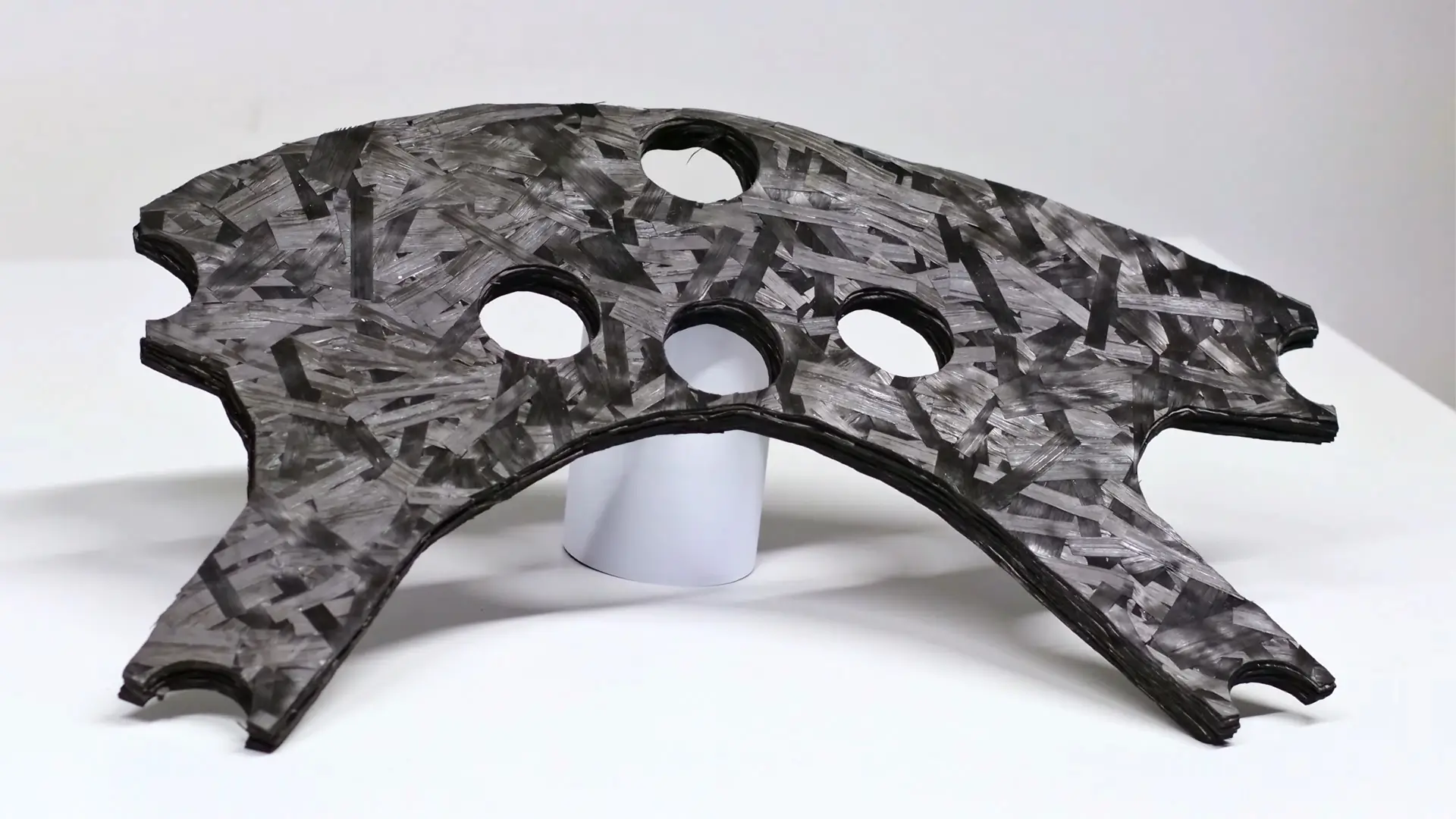

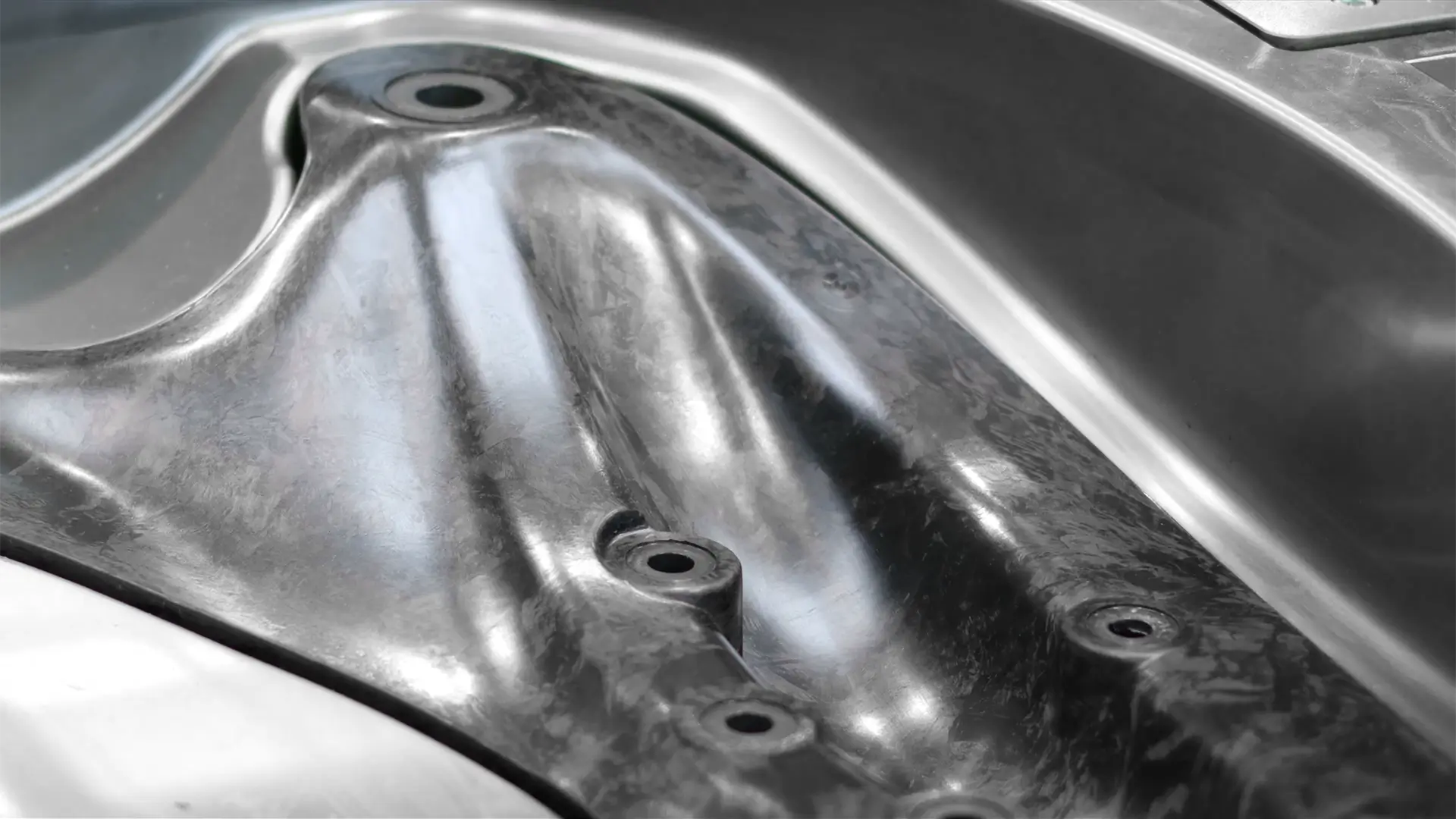

What is Carbon Fiber Sheet Molding Compound?
The carbon fiber sheet molding compound, also known as carbon fiber SMC, is a type of prepreg material consisting of chopped carbon fibers mixed with a thermoset resin, typically epoxy or polyester. The mixture is formed into sheets and stored until it’s ready for molding.
The carbon fiber sheet molding compound process is ideal for producing complex, high-strength parts in large volumes. It enables manufacturers to mold multiple parts in a single press cycle, which significantly reduces cycle time and manufacturing cost.
Key Characteristics of Carbon Fiber Sheet Molding Compound:
- High fiber volume fraction
- Excellent surface finish
- Fast cycle times
- Suitable for automated compression molding
- Good for large-scale component production

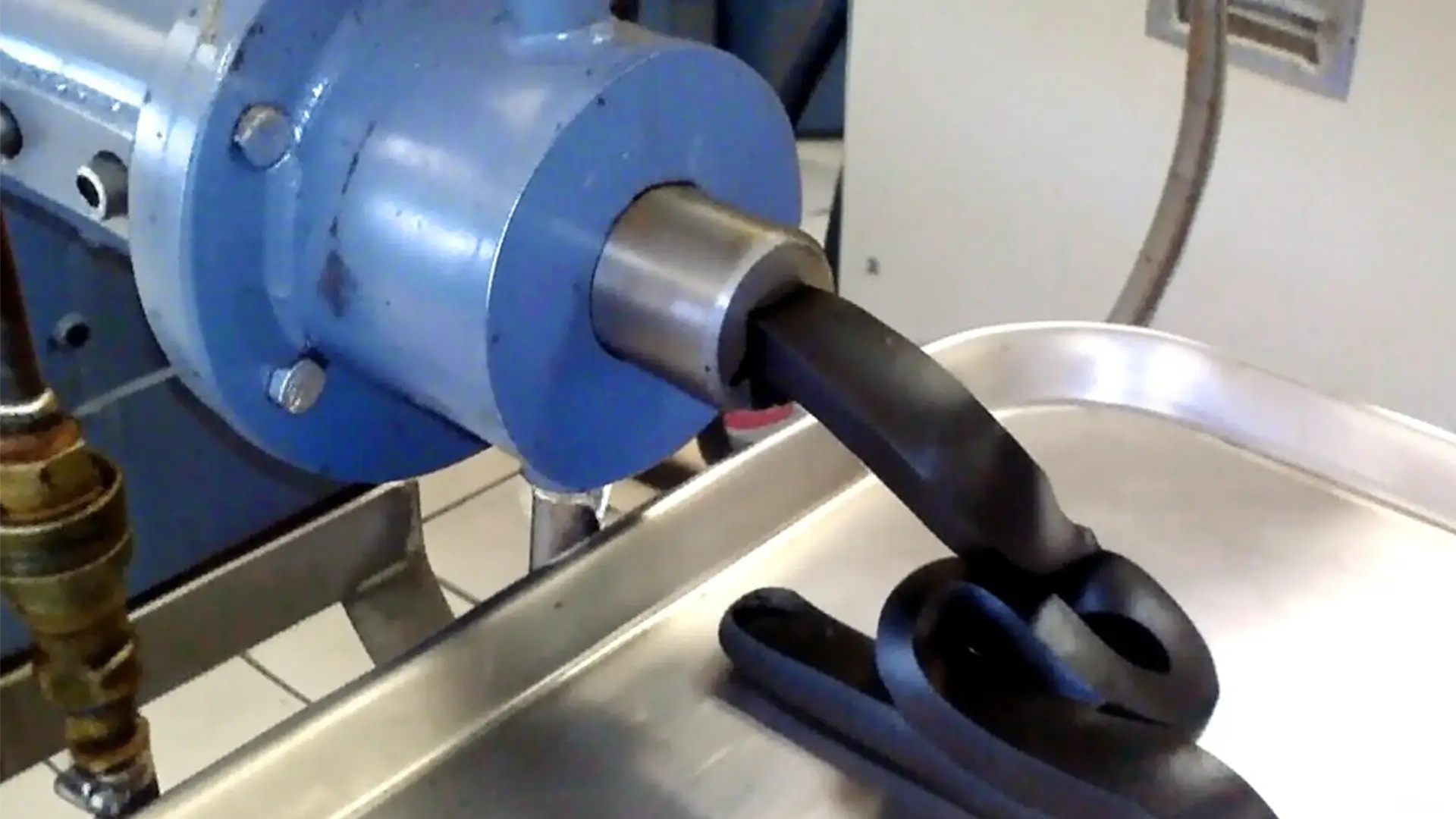

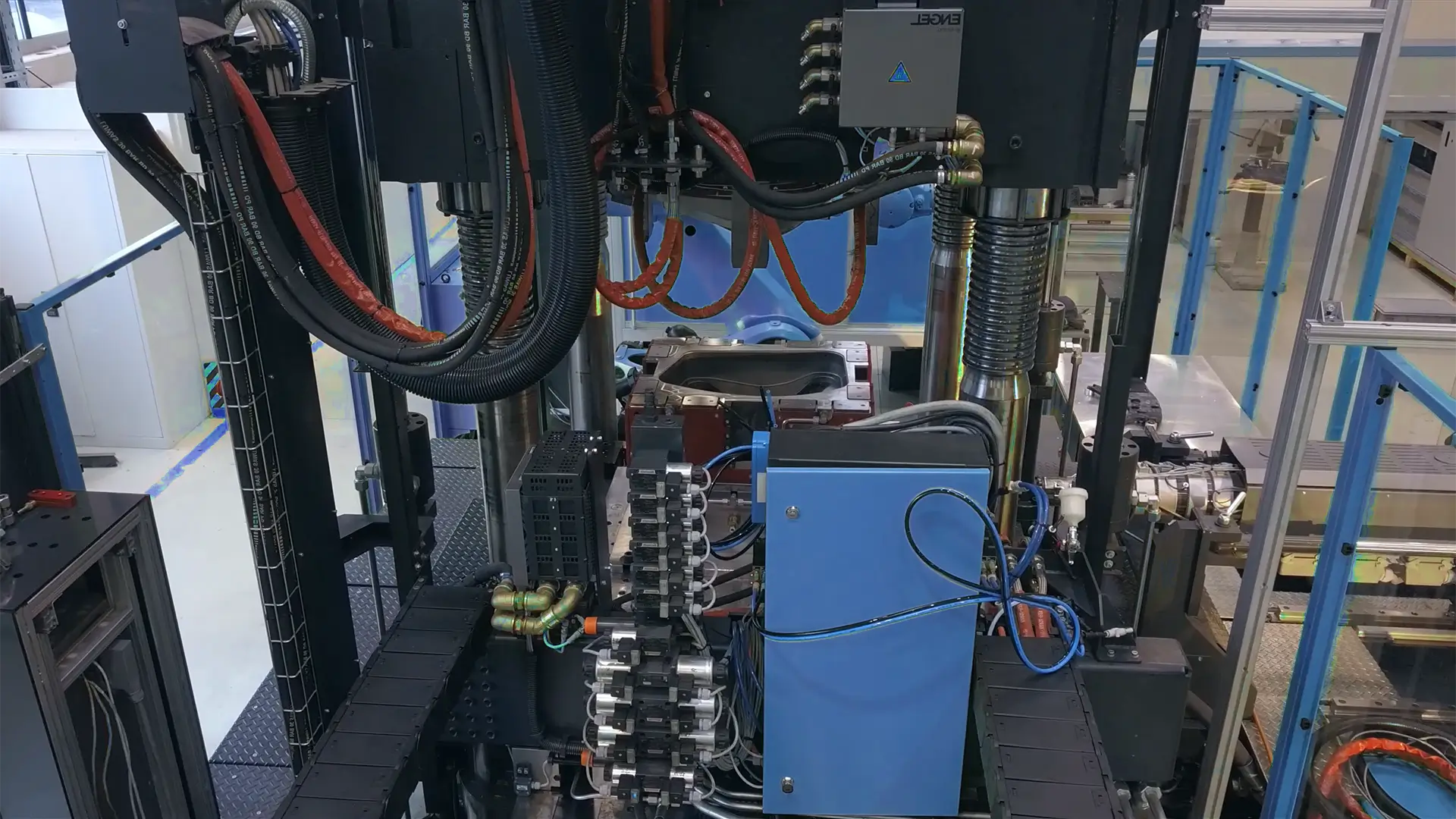

What is Bulk Molding Compound Carbon Fiber?
Bulk molding compound carbon fiber, or carbon fiber BMC, is a premixed blend of chopped carbon fiber, resin, fillers, and additives. Unlike SMC, which is stored in sheet form, BMC is stored in bulk paste form. The bulk molding compound carbon fiber is loaded directly into compression molds to form parts.
This method is especially suited for small to medium-sized components with complex geometries. BMC also offers design flexibility and is cost-effective for high-volume production.
Key Characteristics of Bulk Molding Compound Carbon Fiber:
- Uniform material distribution
- Ideal for small, intricate parts
- Minimal material waste
- Short mold cycle times
- Suited for high-volume production
Carbon Fiber Sheet Molding Compound Line: Production Overview
The carbon fiber sheet molding compound line involves multiple stages of material preparation, sheet formation, storage, and final molding. Below is a breakdown of the process and the equipment involved.
Step-by-Step Process:
- Material Preparation: Carbon fibers are chopped to a controlled length (commonly 25mm–50mm). Thermoset resins and additives are prepared.
- Mixing & Impregnation: The chopped fibers are mixed with resin and additives in an automated system.
- Sheet Formation: The impregnated mixture is layered between plastic films to form continuous SMC sheets.
- Maturation: Sheets are stored in a temperature-controlled room for a specific time to allow resin thickening (also known as “maturation”).
- Cutting & Preforming: Sheets are cut into charges matching mold dimensions.
- Compression Molding: The charges are placed into a heated mold under high pressure to cure and form the final part.
- Trimming & Finishing: Molded parts are trimmed and post-processed as required.
Equipment Used in Carbon Fiber Sheet Molding Compound Line:
| Equipment | Function |
|---|---|
| Fiber Chopper | Cuts carbon fiber to precise lengths |
| Resin Mixer | Mixes resin, fillers, and additives |
| Sheet Forming Machine | Layers impregnated fiber-resin mix into continuous sheets |
| Film Dispenser & Carrier | Places and removes protective films |
| SMC Storage Chamber | Maintains temperature and humidity for resin maturation |
| Cutting Table or Guillotine | Cuts sheets into mold-sized charges |
| Compression Molding Press | Molds SMC into finished components using heat and pressure |
| Trimming & Inspection Station | Finishes edges and ensures quality |
Bulk Molding Compound Carbon Fiber Line: Production Overview
The bulk molding compound carbon fiber line is similar in principle to SMC but differs in material form and feeding methods.
Step-by-Step Process:
- Material Preparation: Carbon fiber is chopped to shorter lengths (6mm–12mm), mixed with resin, filler, and additives.
- Compound Forming: The mixture is blended in an intensive mixer until uniform.
- Storage: BMC is stored in sealed containers to prevent contamination and moisture absorption.
- Molding Process: Measured quantities are loaded into heated molds using automated or manual feeders.
- Compression & Curing: The mold is closed, heat and pressure are applied to cure the part.
- Part Removal: Mold opens, and finished parts are ejected.
- Trimming & Finishing: Final parts are trimmed and inspected for quality.
Equipment Used in Bulk Molding Compound Carbon Fiber Line:
| Equipment | Function |
|---|---|
| Fiber Chopper | Chops carbon fiber into short lengths |
| Resin-Filler Mixer | Combines resin with carbon fiber, fillers, and catalysts |
| High-Intensity Compounder | Ensures even dispersion and material consistency |
| BMC Storage System | Sealed containers for compound storage |
| Compression Molding Press | Shapes the bulk material into components using heat and pressure |
| Part Ejector System | Ejects molded components |
| Trimming Station | Finishes and checks the parts for defects or size issues |
Advantages / Disadvantages of Carbon Fiber Sheet Molding Compound and Bulk Molding Compound
Both carbon fiber sheet molding compound and bulk molding compound carbon fiber lines provide distinct benefits that cater to different needs. Understanding their advantages helps customers choose the best solution for their application.
| Advantage | SMC (Sheet Molding Compound) | BMC (Bulk Molding Compound) |
|---|---|---|
| High Volume Production | Yes | Yes |
| Excellent Surface Finish | Yes | Moderate |
| Complex Shape Molding | Moderate | Excellent |
| Lightweight, High Strength | Yes | Yes |
| Lower Material Waste | Moderate | High |
| Short Mold Cycle Times | Yes | Yes |
| Precision and Dimensional Stability | Excellent | Excellent |
| Automation Compatibility | High | High |
| Storage Flexibility | Sheet-based, easier for large parts | Paste form, better for small/medium parts |
| Disadvantage | SMC (Sheet Molding Compound) | BMC (Bulk Molding Compound) |
|---|---|---|
| Fiber Orientation Control | Limited – mostly random fiber alignment | Very limited – short fibers reduce strength |
| Brittleness | Moderate – can be brittle under impact | Higher – more prone to cracking under stress |
| Surface Finish on Complex Shapes | May lose quality on intricate geometries | Often less refined on detailed surfaces |
| Recyclability | Not recyclable – thermoset resin | Not recyclable – thermoset resin |
Applications of SMC and BMC in Carbon Fiber Parts
The carbon fiber sheet molding compound and bulk molding compound carbon fiber processes are used across diverse industries due to their efficiency and material properties.
| Industry | Typical Applications |
|---|---|
| Automotive | Body panels, hoods, trunk lids, fenders, underbody shields, battery enclosures, bumpers (SMC); small brackets, covers, fuse boxes, sensor housings (BMC) |
| Aerospace | Interior panels, overhead bins, support structures, seating components, galley equipment, fairings, access doors |
| Electronics | Electrical enclosures, circuit board supports, EMI/RFI shielding cases, battery packs, terminal boxes, heat-resistant component housings |
| Medical Devices | Diagnostic equipment housings, imaging machine frames, surgical equipment covers, mobile device carts, ergonomic shell structures |
| Sports Equipment | Helmet shells, protective gear, lightweight composite housings, bicycle saddle bases, racket handles, ski boot shells |
| Consumer Goods | Durable casings for power tools, luggage frames, chair components, appliance panels, high-strength furniture parts, outdoor equipment shells |
| Industrial | Pump housings, machine covers, panel boards, conveyor enclosures, junction boxes, HVAC casings |
| Telecommunications | Antenna radomes, signal enclosures, mounting brackets, weather-resistant cases |
| Energy | Solar panel backing structures, wind turbine nacelle panels, energy storage casing components |
| Rail & Mass Transit | Seat backs, side panels, light enclosures, interior wall panels |
Key Considerations for Customization
When evaluating whether to use the carbon fiber sheet molding compound process or the bulk molding compound carbon fiber method, customers should consider several critical factors.
Part Complexity
- Use carbon fiber BMC for intricate, small parts with high dimensional tolerance.
- Use carbon fiber SMC for larger, flatter components requiring high surface quality.
Production Volume
- Both processes are suited for high-volume production, but BMC offers better mold-filling for smaller molds.
Surface Finish
- SMC typically delivers a smoother finish suitable for visible parts.
Material Selection
- Fiber length, resin type, and additives should match mechanical, thermal, and chemical resistance needs.
Cost Efficiency
- BMC may offer lower production costs per part due to reduced waste and simpler mold design.
FAQs – Carbon Fiber Parts Sheet/Bulk Molding Compound Line
Can I customize formulations and part designs for my specific application?
Yes. The carbon fiber sheet and bulk molding compound lines can be tailored for fiber length, resin type, filler content, and part geometry to meet performance, cost, and production goals for various industries.
Can the mold design be tailored to support my unique part geometry and dimensional tolerances?
Yes. We provide full mold design support to meet your part’s geometry, complexity, and dimensional accuracy. Our engineering team ensures your mold is optimized for both SMC and BMC processing.
How flexible is the production line in handling low or high-volume custom orders?
Our carbon fiber parts molding lines are highly adaptable. We support both low-volume prototype runs and high-volume mass production, offering flexibility according to your development and market scale needs.
Can you help optimize part performance and cost through material or design recommendations?
Yes. Our technical team works closely with customers to balance performance and cost. We assist with material selection, part design refinement, and molding strategy to ensure you get the best results for your application.
