Overview of Key Areas in a Carbon Fiber Manufacturing Facility
A professional carbon fiber manufacturing facility typically consists of the following critical zones:
| Zone | Primary Function | Key Equipment |
|---|---|---|
| Material Preparation (Cutting Room) | Cutting dry or prepreg fabrics | CNC cutting machines, cutting tables |
| Layup Room | Manual or automatic fiber layup | Tables, layup tools, templates |
| Molding Area | Mold preparation, assembly, resin infusion | Molds, vacuum systems |
| Curing Room (Oven/Autoclave) | Heating and pressurizing parts | Ovens, autoclaves |
| Demolding and Trimming | Part removal and edge trimming | Hand tools, trimming machines |
| Surface Treatment (Sanding/Painting) | Sanding, painting, polishing | Sanders, spray booths |
| Quality Control Room | Ultrasonic, X-ray, dimensional inspection | Inspection machines, NDT tools |
| Assembly Area | Assembling complex structures | Jigs, fixtures, assembly tools |
| Winding Area | Fiber winding | Winding systems |
| CNC Machining Center | Final trimming and drilling | CNC machines, routers |
Each of these zones is essential for maintaining a smooth and efficient carbon fiber parts manufacturing process.

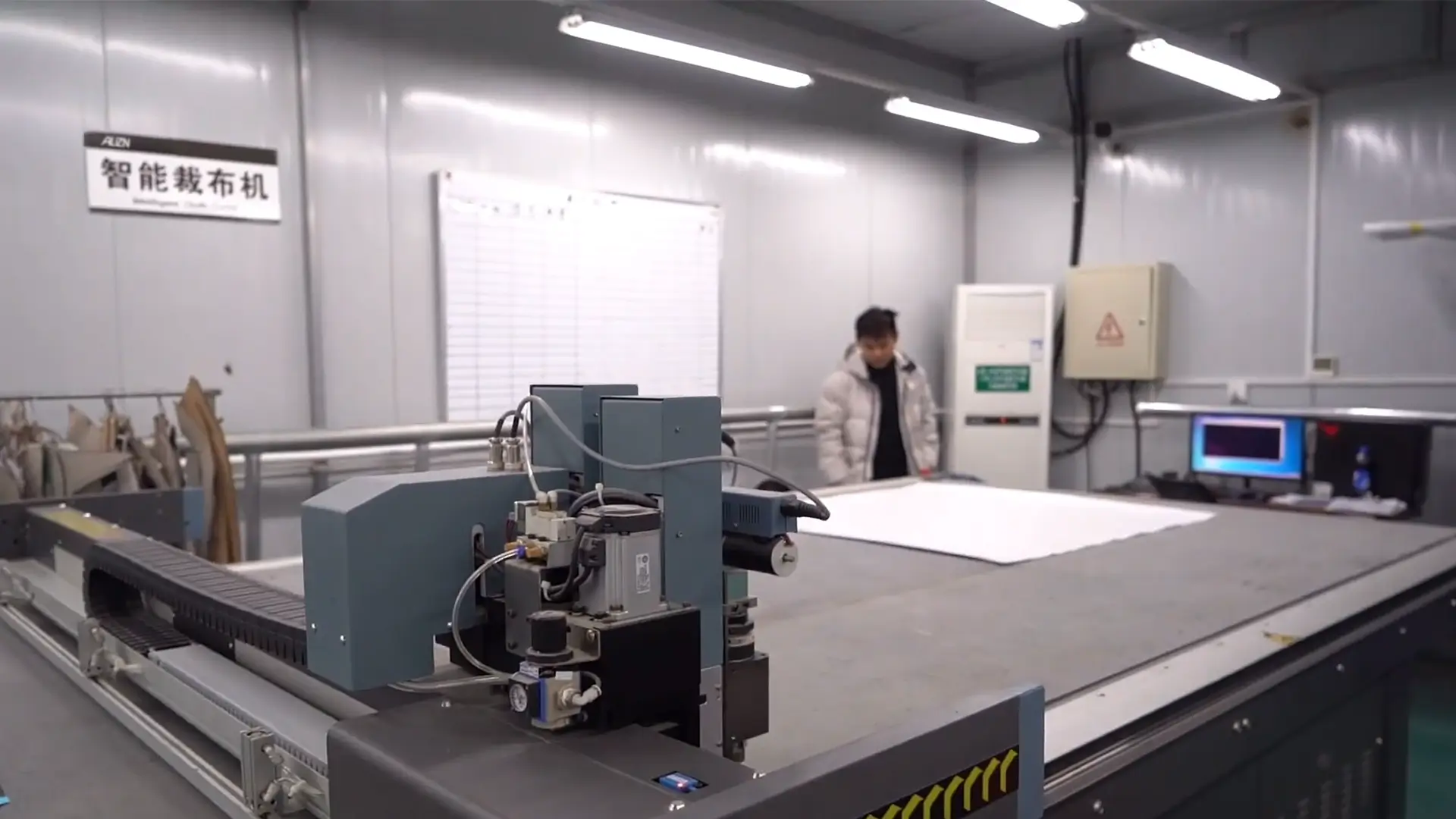

Material Preparation Area (Cutting Room)
The first stage in carbon fiber manufacturing is material preparation. The cutting room is where dry fabrics or prepregs are accurately cut into specific shapes and sizes based on production requirements.
Key Characteristics:
- Climate-Controlled Environment: To prevent moisture absorption by carbon fiber fabrics.
- Dust-Free Area: Reduces the risk of contamination during cutting.
- Storage Racks: For different types of fibers and prepregs.
- Cutting Tools: CNC cutting tables, manual cutters for prototypes.
Precise cutting ensures that each layer of the final composite product maintains structural integrity. Inaccurate cutting at this stage can lead to costly production errors later.
For a carbon fiber company, an efficient material preparation zone minimizes material waste and speeds up the overall process, enhancing competitiveness in the market.

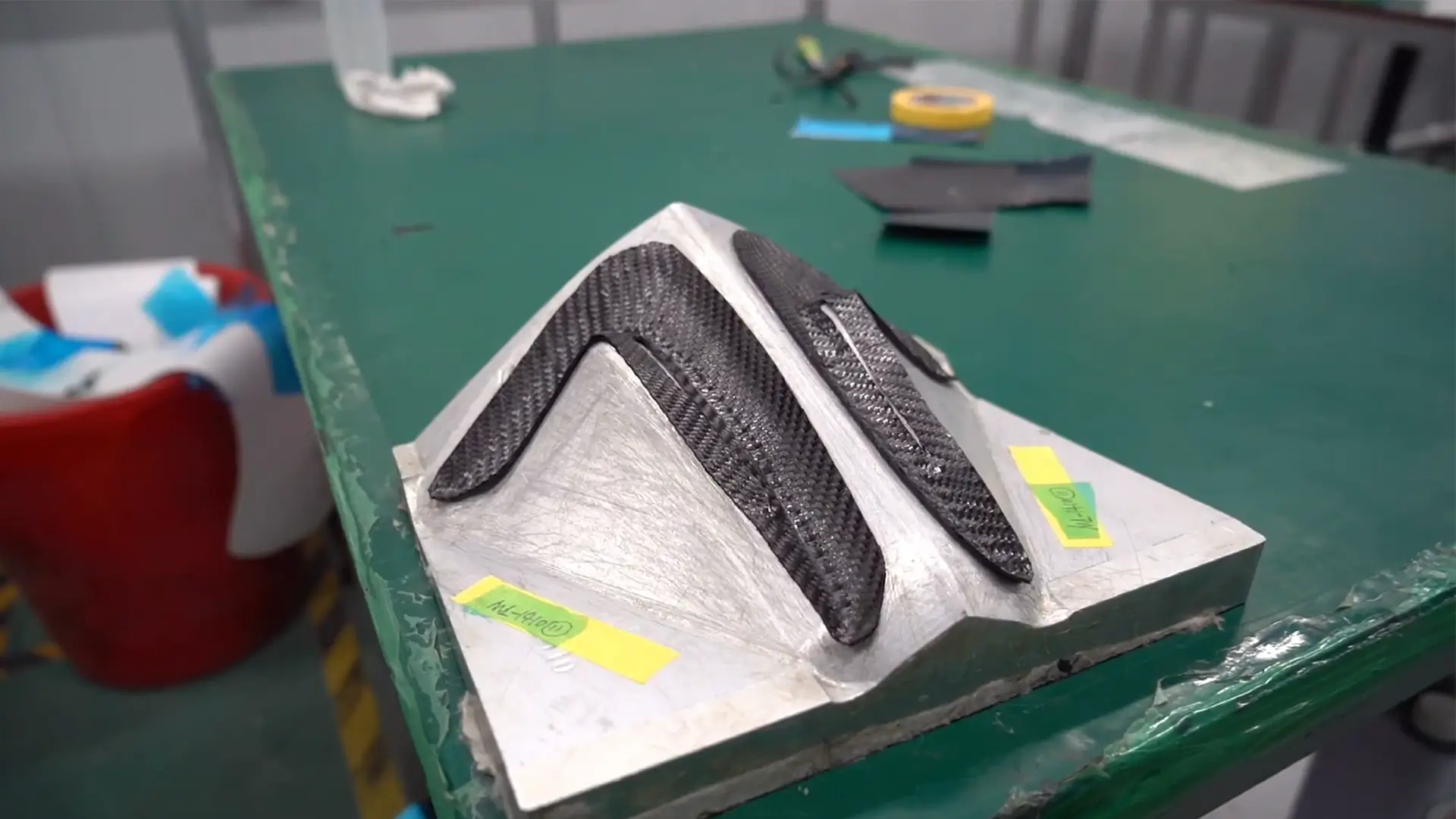

LayUp Room
After cutting, the fabrics are moved to the lay-up room. Here, layers of carbon fiber fabrics are stacked according to design specifications.
Main Features:
- Clean and Temperature-Controlled: Dust and moisture can compromise the adhesion of layers.
- Protective Gear: Workers must use gloves and protective suits to avoid contamination.
Carbon fiber hand layup is a critical process that demands high skill levels. Whether manually or using automated systems, this stage defines the fiber orientation, directly influencing the mechanical performance of the final part.
Proper organization in the lay-up room helps a carbon fiber manufacturer achieve consistent and defect-free parts.

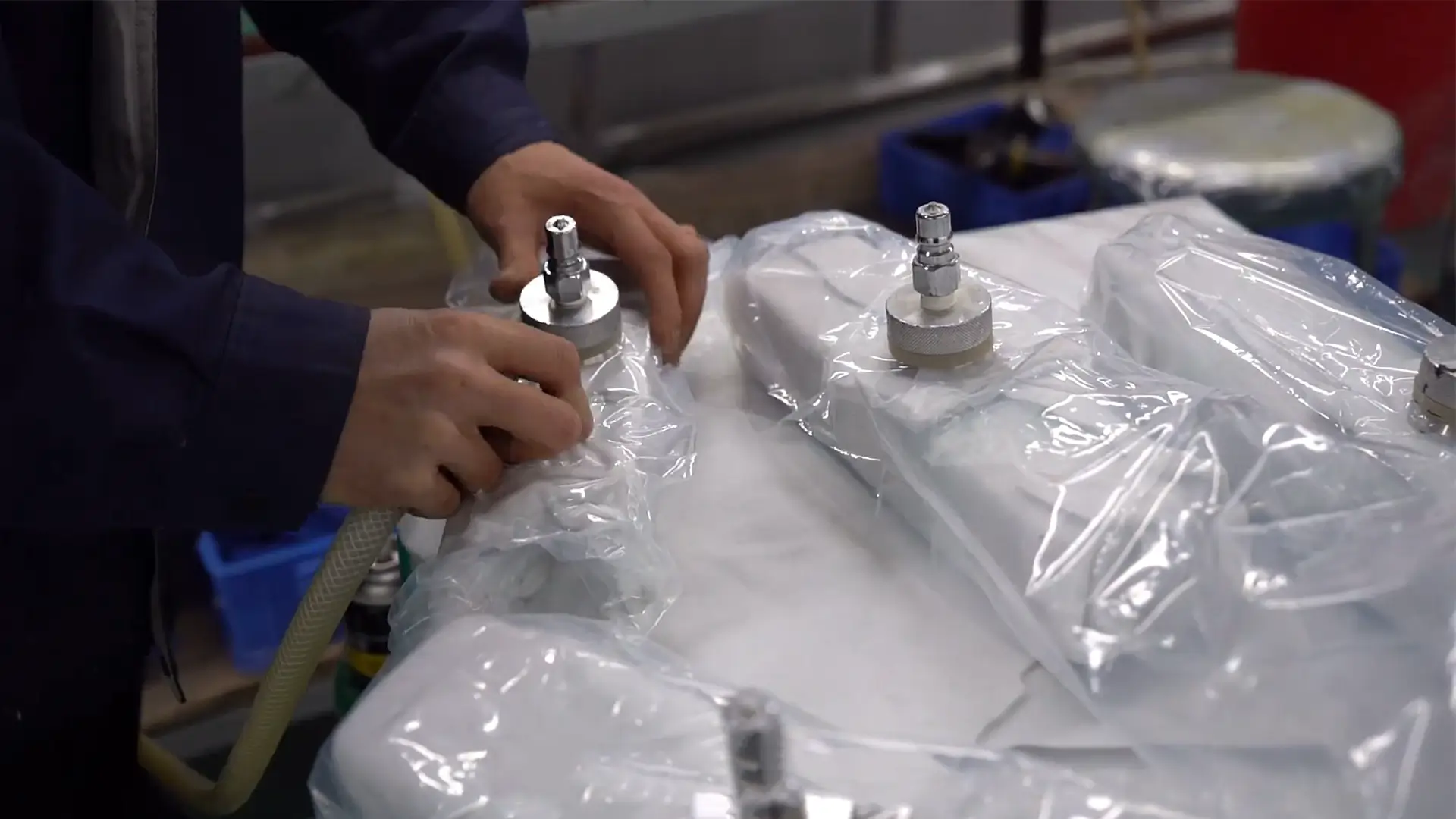

Molding Area
Once layup is complete, the material must be placed into molds for shaping.
Essential Equipment:
- High-Precision Molds: Steel or composite molds depending on the application.
- Vacuum Systems: For resin infusion and preform stabilization.
- Heating Systems: Preheating molds to optimize resin flow.
Molding is a critical phase in carbon fiber parts manufacturing. Inaccurate mold preparation can cause defects such as wrinkles or voids.
For a professional carbon fiber auto parts manufacturer, investing in high-quality molds and carefully organizing the molding area is non-negotiable.

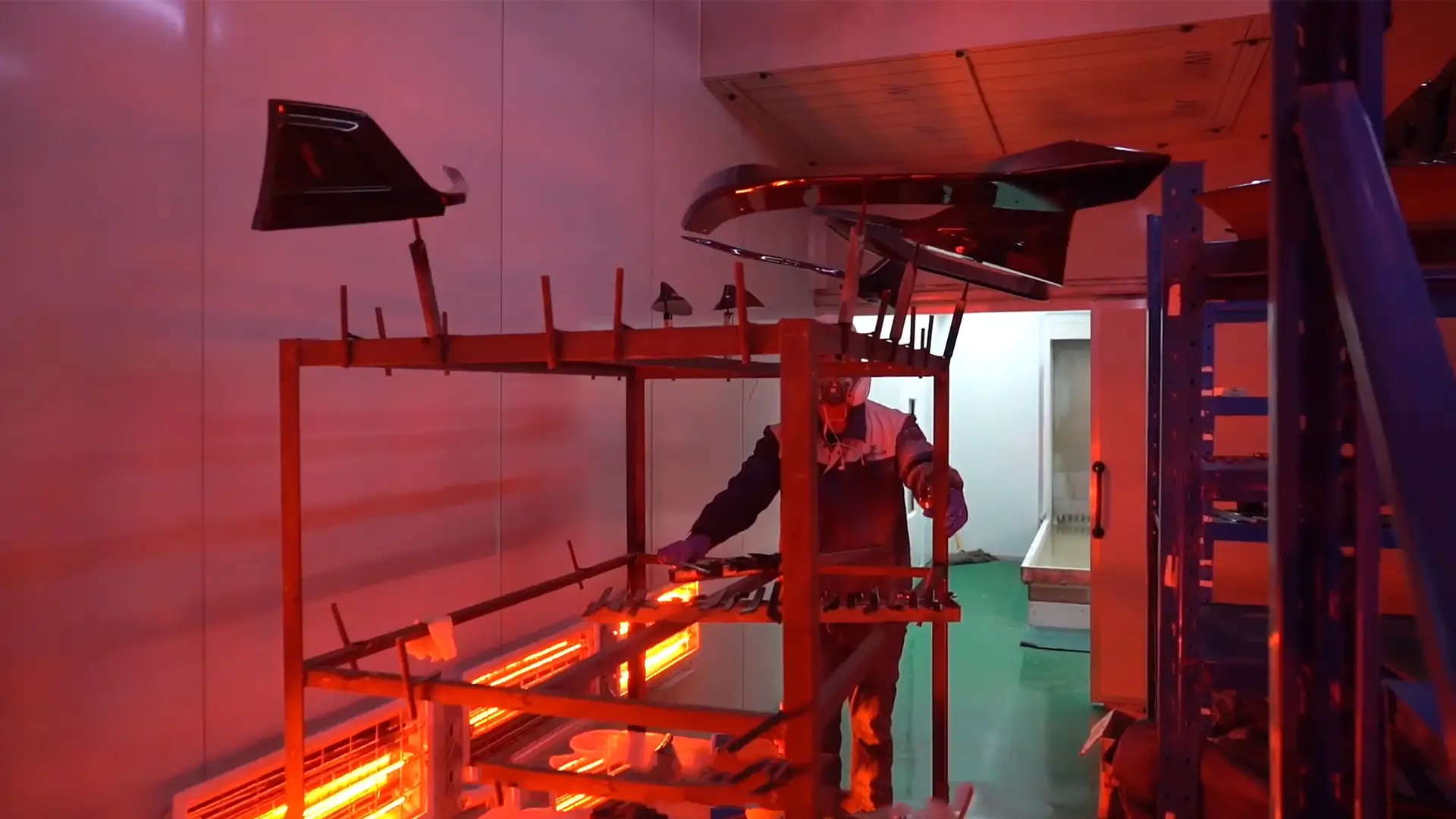

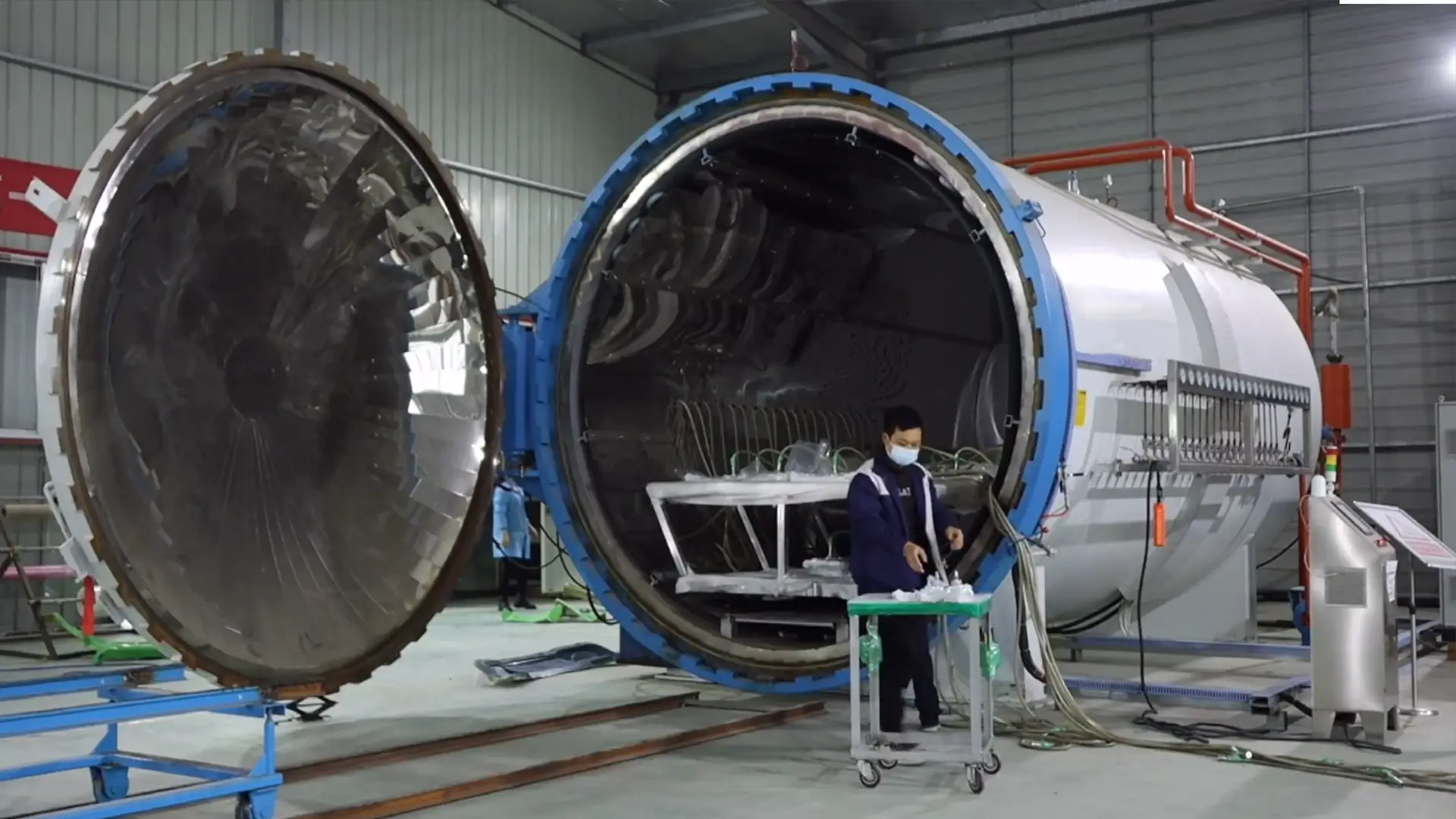

Curing Room (Oven/Autoclave)
The curing room is where the carbon fiber parts are heated and pressurized to achieve full strength.
| Curing Method | Features | Applications |
|---|---|---|
| Oven Curing | Uniform heating | Small and medium parts |
| Autoclave Curing | Heating + high pressure | Aerospace, automotive, racing parts |
Maintaining consistent temperature and pressure during curing is crucial. Advanced autoclaves help a carbon fiber manufacturer produce lightweight, high-strength parts required for demanding industries.
A well-organized curing area with real-time monitoring systems ensures no part leaves the curing room without meeting required standards.

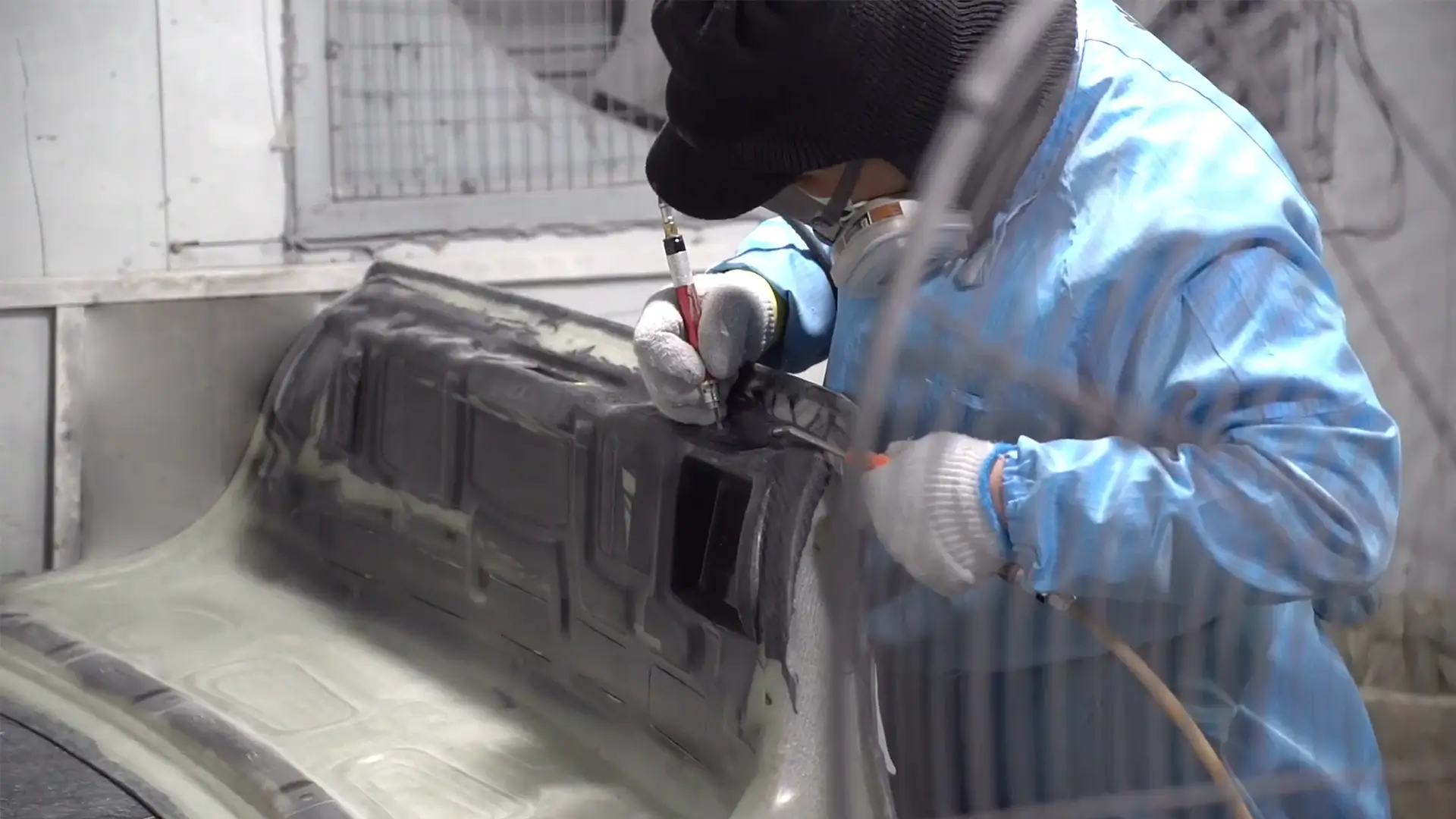

Demolding and Trimming Area
Once parts are fully cured, they are demolded and trimmed to final shape.
Best Practices:
- Demolding Tools: Minimize damage to parts.
- Trimming Equipment: Pneumatic trimmers, waterjet cutters.
- Protective Gear: To safeguard operators during trimming.
In a carbon fiber parts manufacturing environment, this area needs to be ergonomic and well-ventilated to handle the fine dust generated during trimming.
Accurate trimming is vital for fitment, especially for a carbon fiber car parts manufacturer producing automotive panels and components.

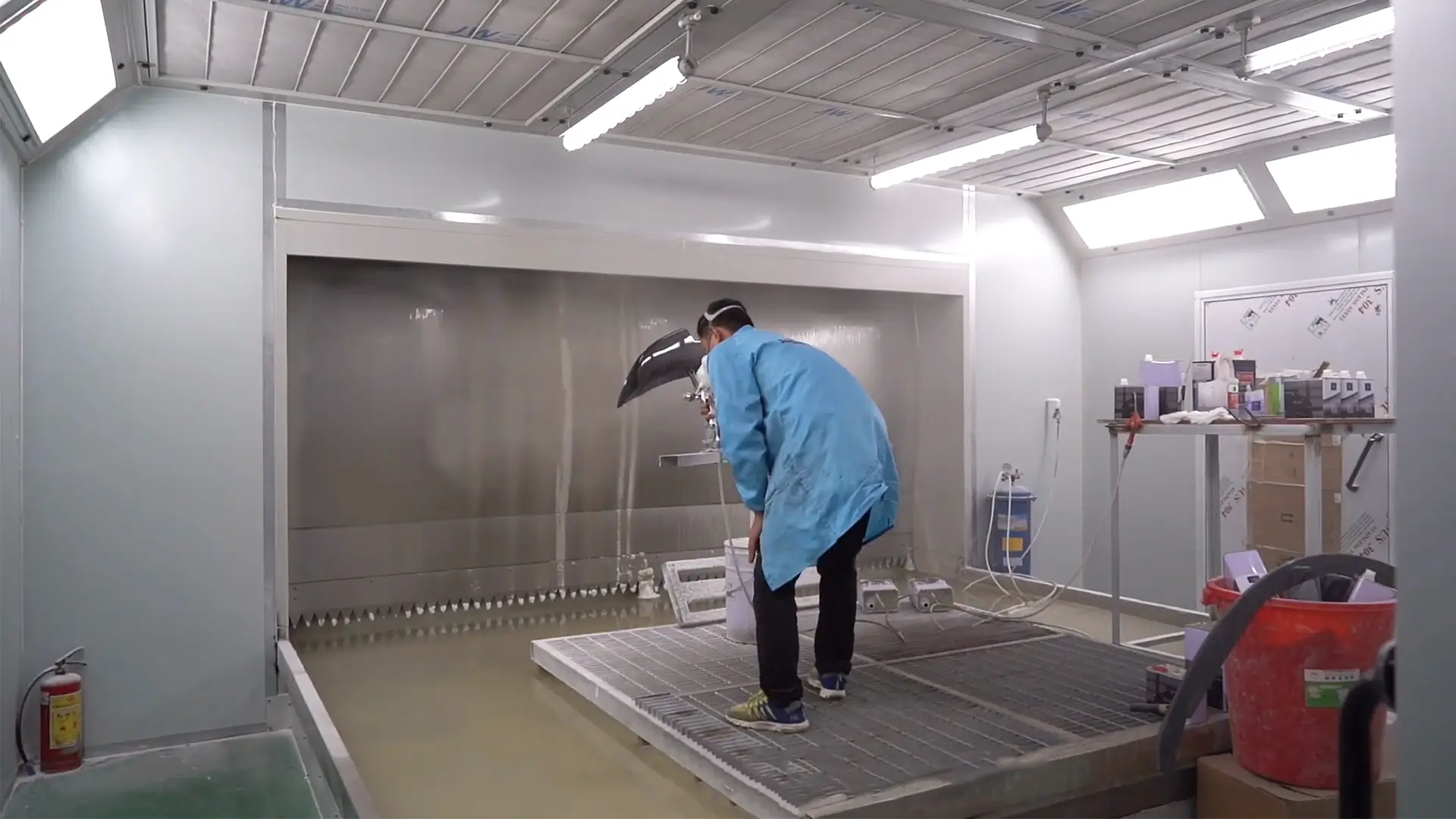

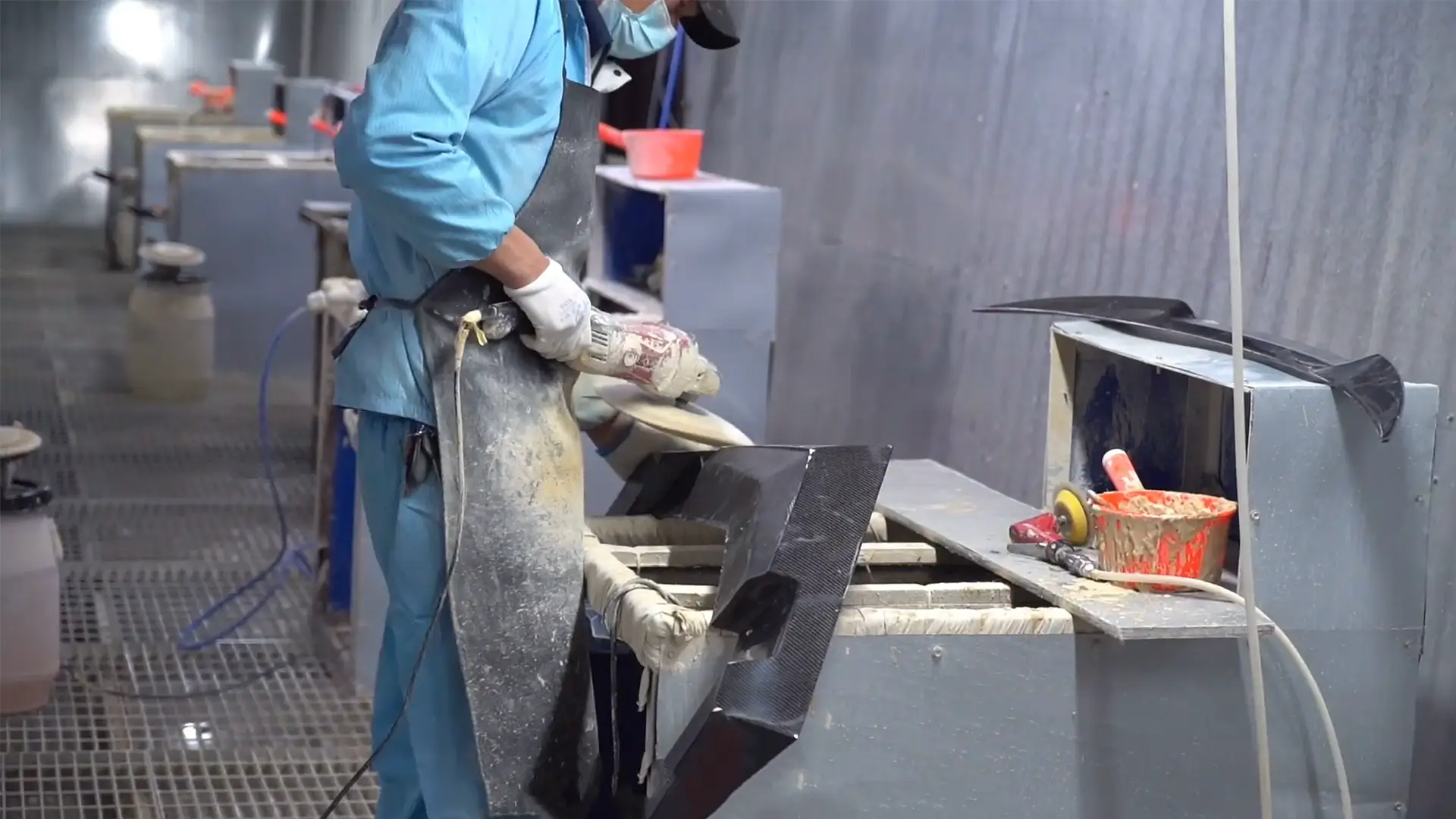

Surface Treatment Area (Sanding and Painting)
Surface finishing ensures that carbon fiber parts not only perform well but also look professional.
| Process | Purpose | Tools |
|---|---|---|
| Sanding | Smooth surface, paint prep | Orbital sanders |
| Painting | Aesthetic finish | Spray booths |
| Polishing | High gloss appearance | Buffing machines |
Maintaining a clean environment in the sanding and painting rooms prevents dust from compromising surface quality, which is critical for visible carbon fiber parts.
This step is particularly important for a carbon fiber auto parts manufacturer focusing on exterior car parts like hoods and spoilers.

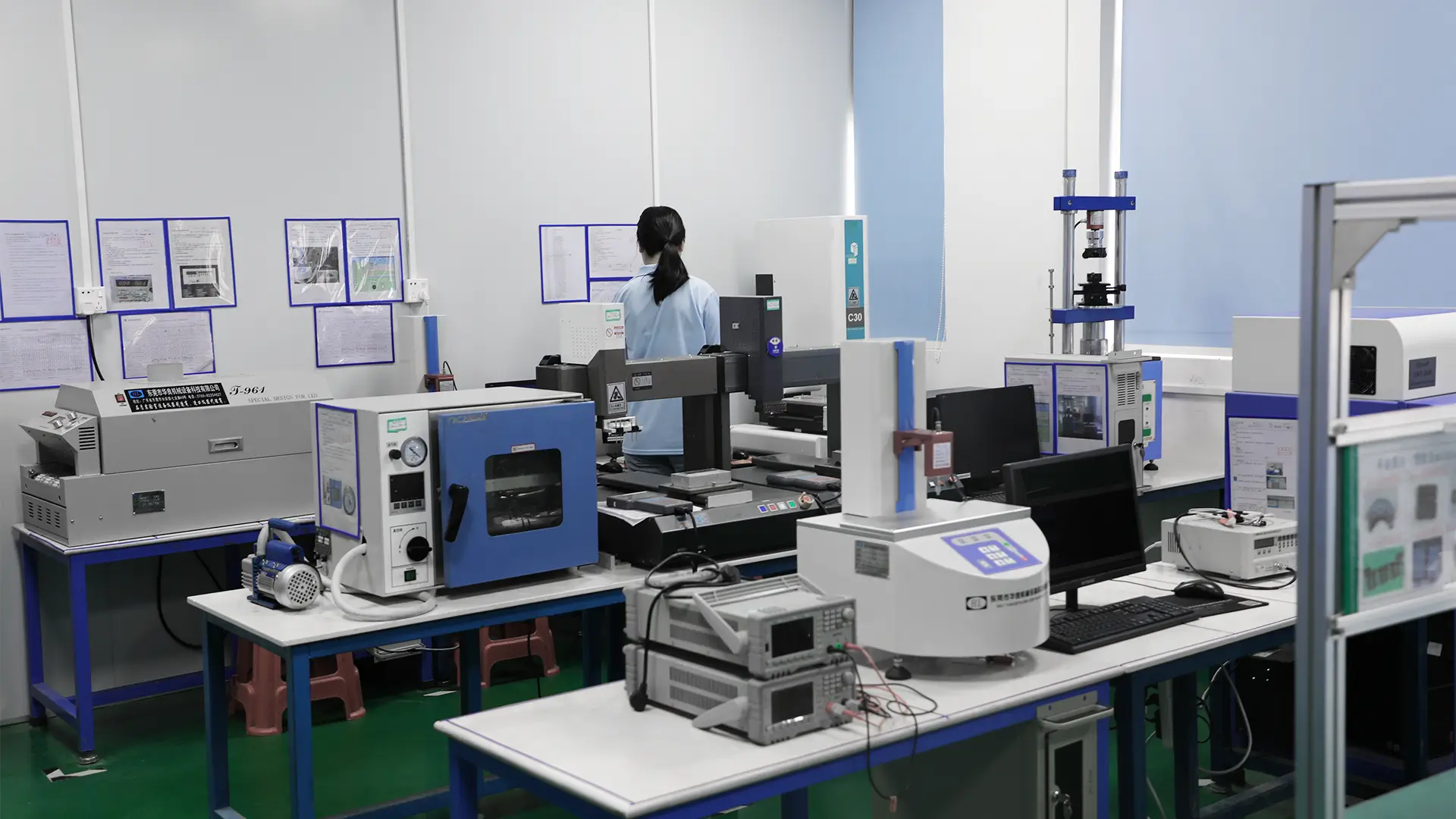

Quality Control Room
The quality control (QC) area ensures that every part meets stringent quality standards before reaching the customer.
| Inspection Type | Equipment Used |
|---|---|
| Ultrasonic Testing | Ultrasonic flaw detectors |
| X-ray Inspection | Industrial X-ray machines |
| Dimensional Inspection | Coordinate Measuring Machines (CMM) |
For a carbon fiber manufacturer, documenting every QC step is essential for traceability and maintaining certifications.
Quality assurance is a pillar for any successful carbon fiber company.
Assembly Area
Complex products like bicycle frames or racing chassis require multiple parts to be assembled.
Key Assembly Tools:
- Jigs and Fixtures: Maintain correct geometry during bonding.
- Adhesives and Fasteners: Aerospace-grade for durability.
- Torque Tools: For precise tightening.
A dedicated assembly area allows a carbon fiber parts manufacturing company to expand its product offerings beyond simple molded parts to complete structural assemblies.

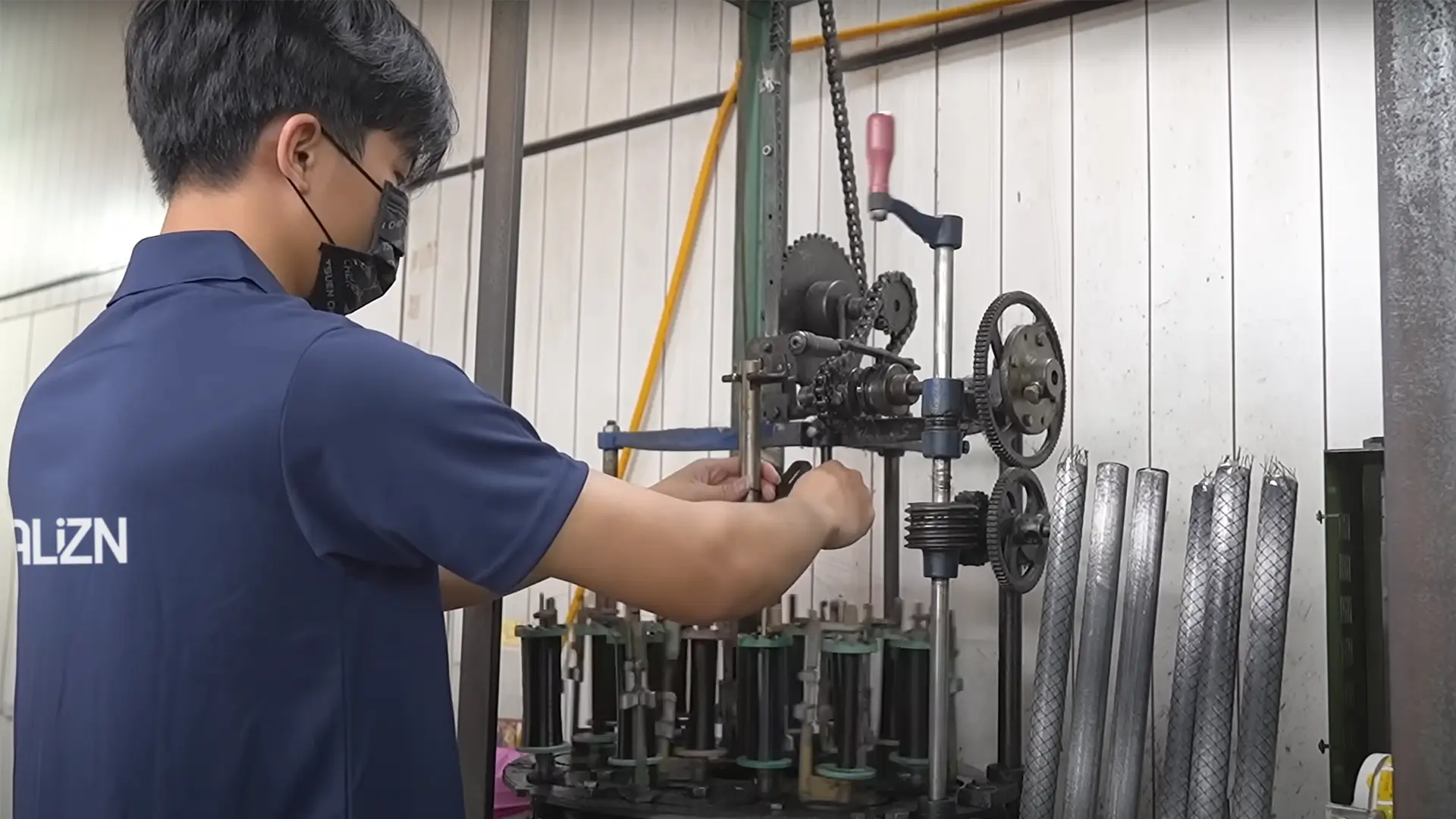

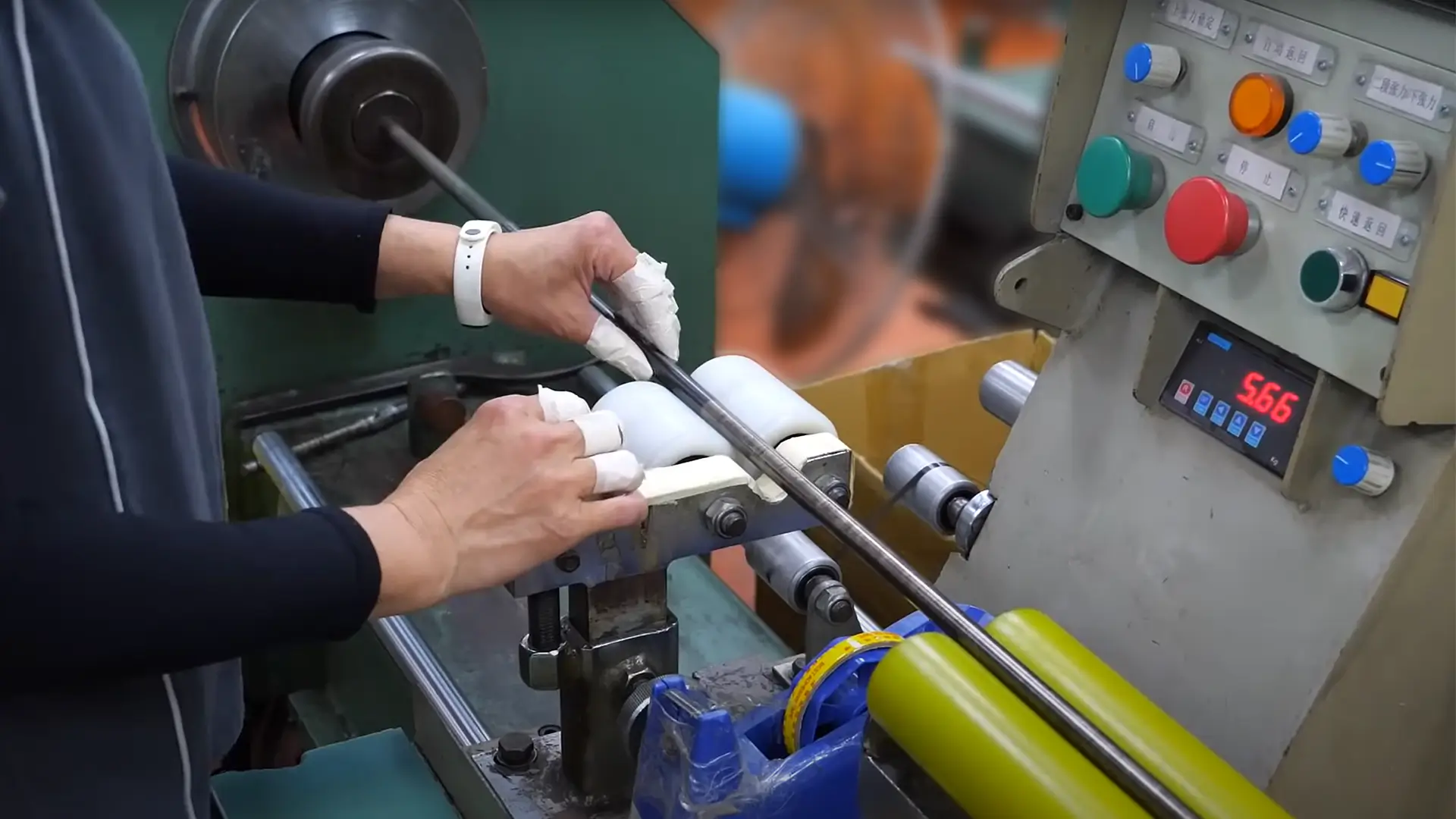

Winding Area
In some products, such as carbon fiber tubes and drive shafts, robotic winding is employed.
Features:
- Controlled Tension: Ensures uniformity.
- Multiple Axis Winding: For complex geometries.
A manufacturer with winding machine can achieve better consistency and reduced production times, giving it a strong competitive advantage.
CNC Machining Center
After curing and initial trimming, final machining is carried out.
| Task | Equipment |
|---|---|
| Cutting | CNC routers |
| Drilling | 5-axis CNC machines |
| Edge Finishing | Deburring tools |
The CNC area must be isolated from lay-up and molding zones to prevent dust contamination.
High-precision machining is essential for a professional carbon fiber parts manufacturing company serving industries like automotive, aerospace, and sports equipment.
