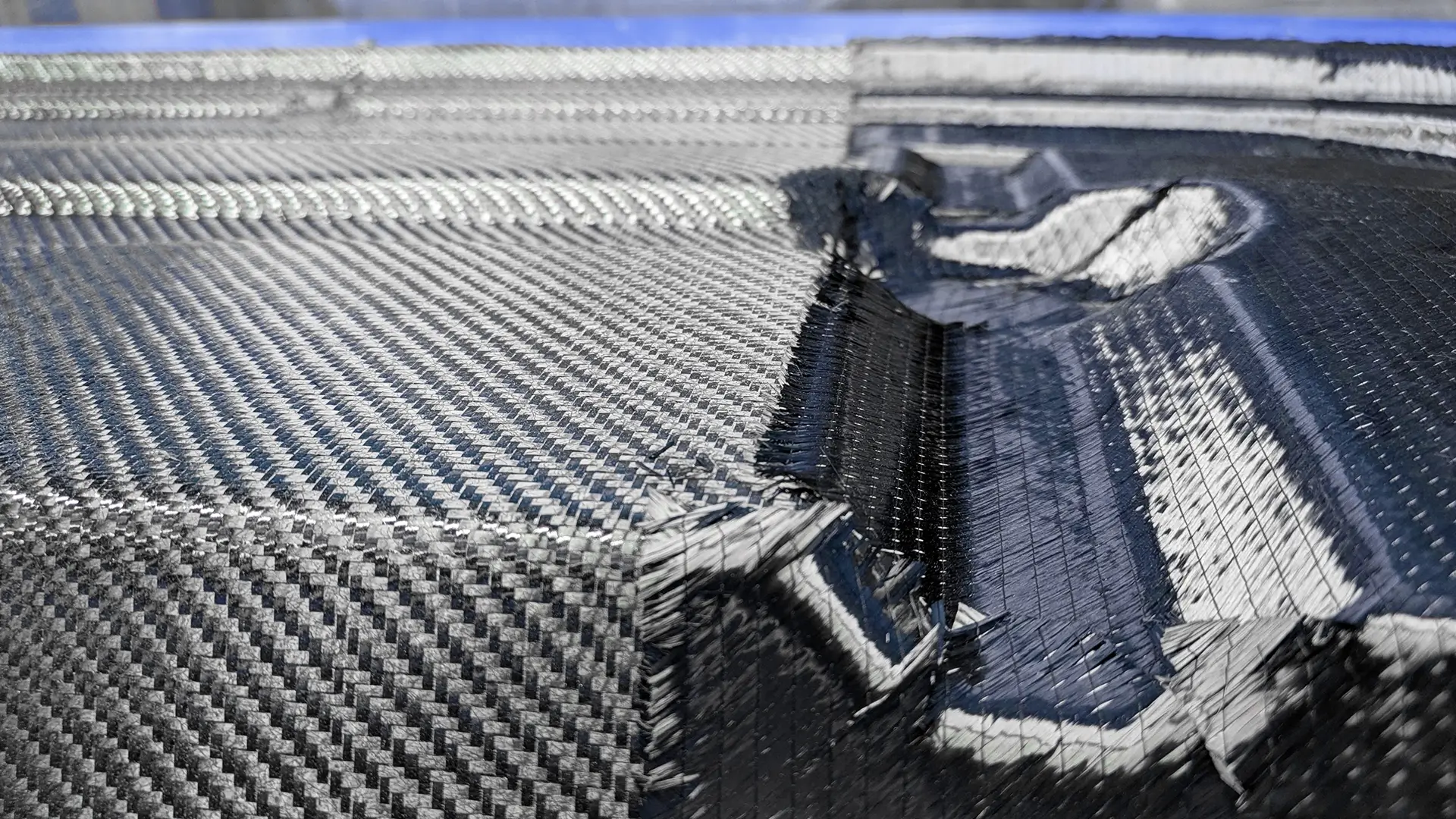

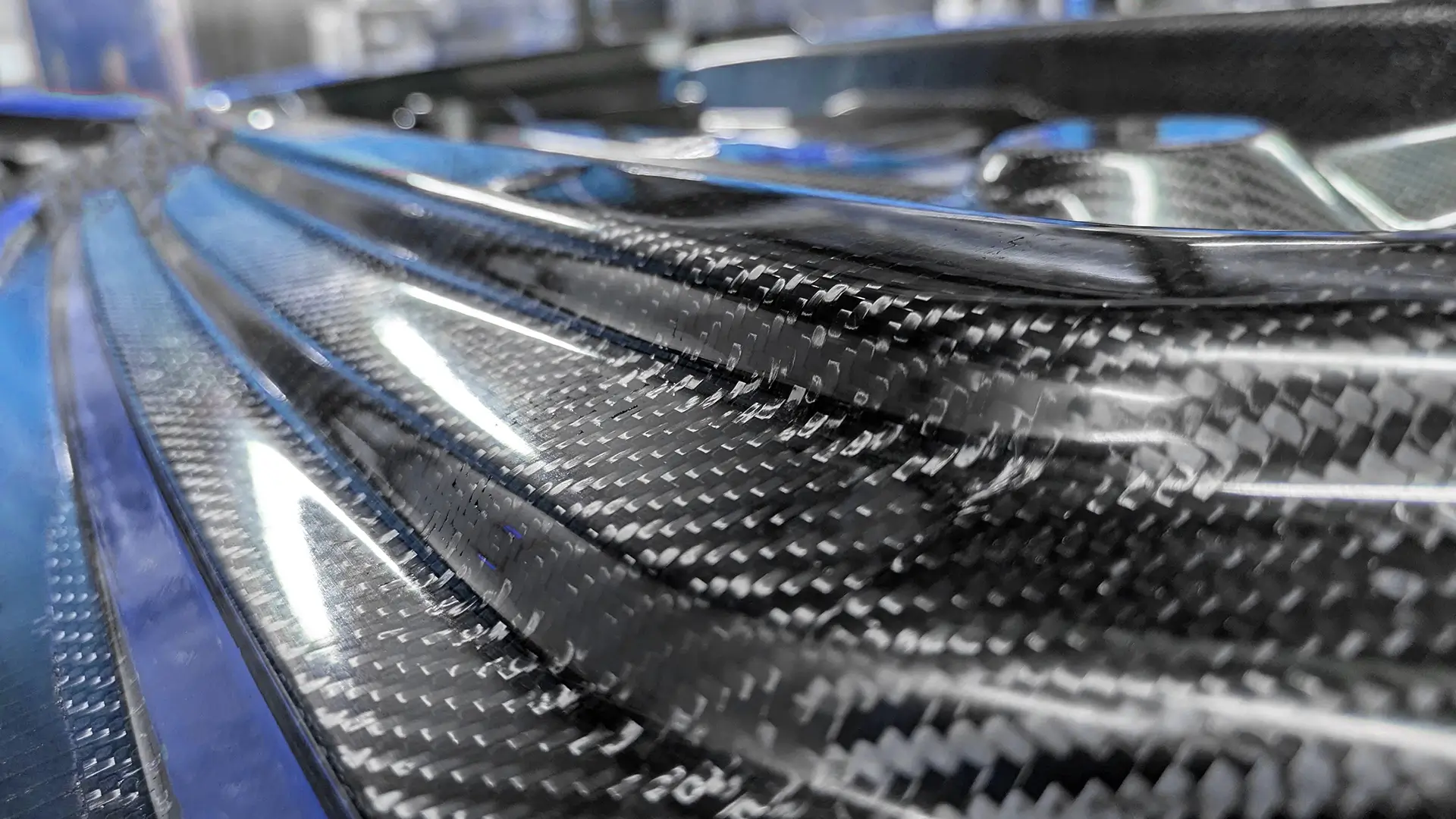

What Is Carbon Fiber Hand Layup?
Carbon fiber hand layup is the traditional technique for creating carbon fiber components. It involves manually placing sheets of carbon fiber fabric into a mold, impregnating them with resin, and carefully building the part layer by layer.
How Carbon Fiber Hand Layup Works
The carbon fiber hand layup process includes several critical steps:
- Preparing the mold surface
- Cutting carbon fiber fabrics to shape
- Applying release agents
- Placing the first carbon fiber layer
- Brushing or rolling resin onto the layer
- Repeating layering as needed
- Curing at room temperature or under controlled heat
Because it is manual, carbon fiber hand layup allows excellent flexibility but requires skilled technicians for consistent quality.
Advantages of Carbon Fiber Hand Layup
- Cost-effective for prototypes and small production runs
- Highly flexible in terms of design and adjustment
- Minimal equipment investment required
Disadvantages of Carbon Fiber Hand Layup
- Relatively labor-intensive
- Higher risk of air bubbles and resin inconsistency
- Surface finish may require additional post-processing

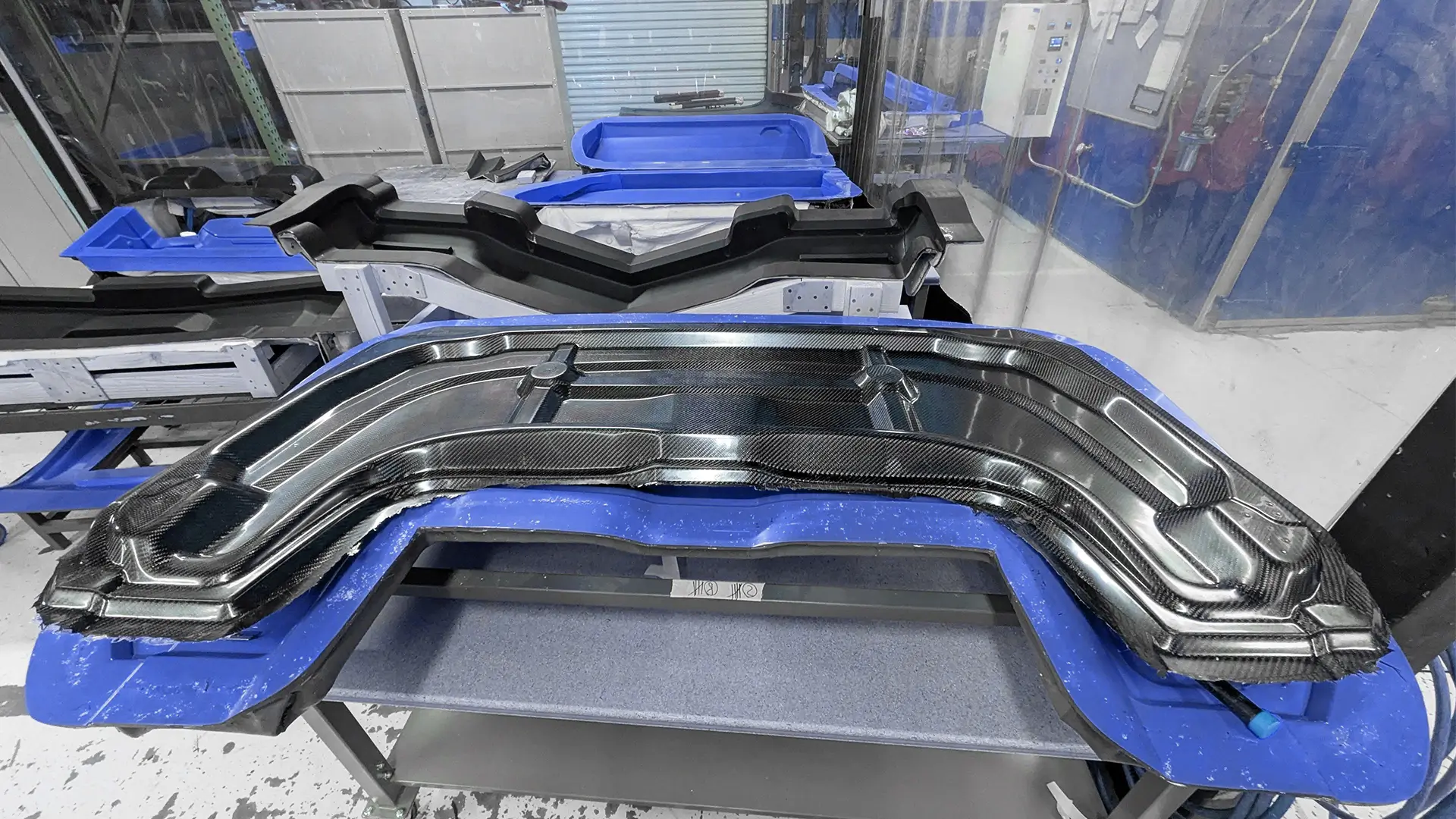

What Is Carbon Fiber Vacuum Bagging?
Carbon fiber vacuum bagging is a technique used to enhance the quality of parts made by hand layup. After laying the carbon fiber and resin, a vacuum bag is sealed around the part, and air is extracted to compress the laminate.

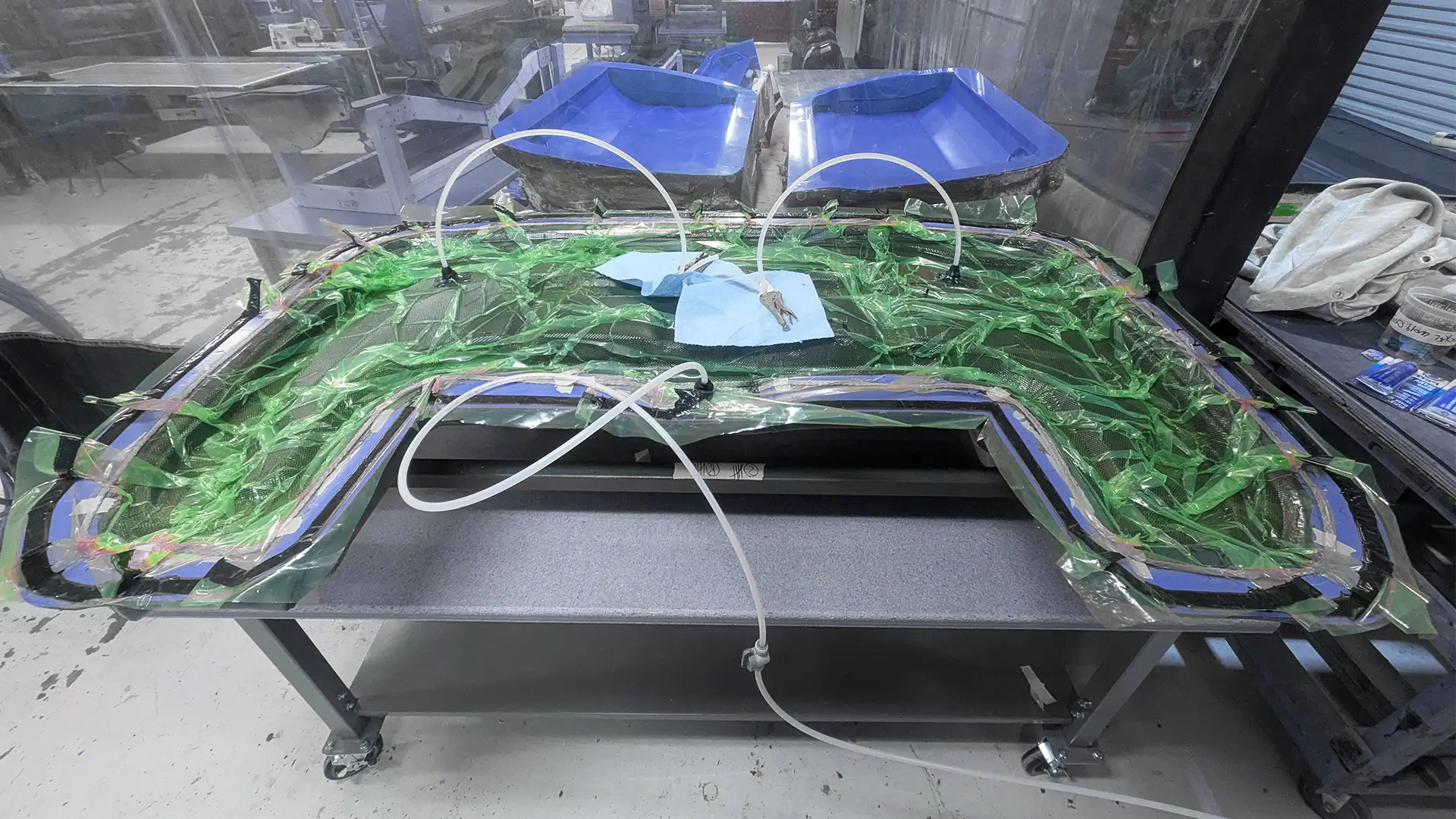

How Carbon Fiber Vacuum Bagging Works
The carbon fiber vacuum bagging process consists of:
- Performing a standard hand layup
- Placing peel ply, breather cloth, and release film over the layup
- Sealing a flexible vacuum bag over the mold
- Drawing air out using a vacuum pump
- Curing under vacuum pressure to compact the fibers and resin

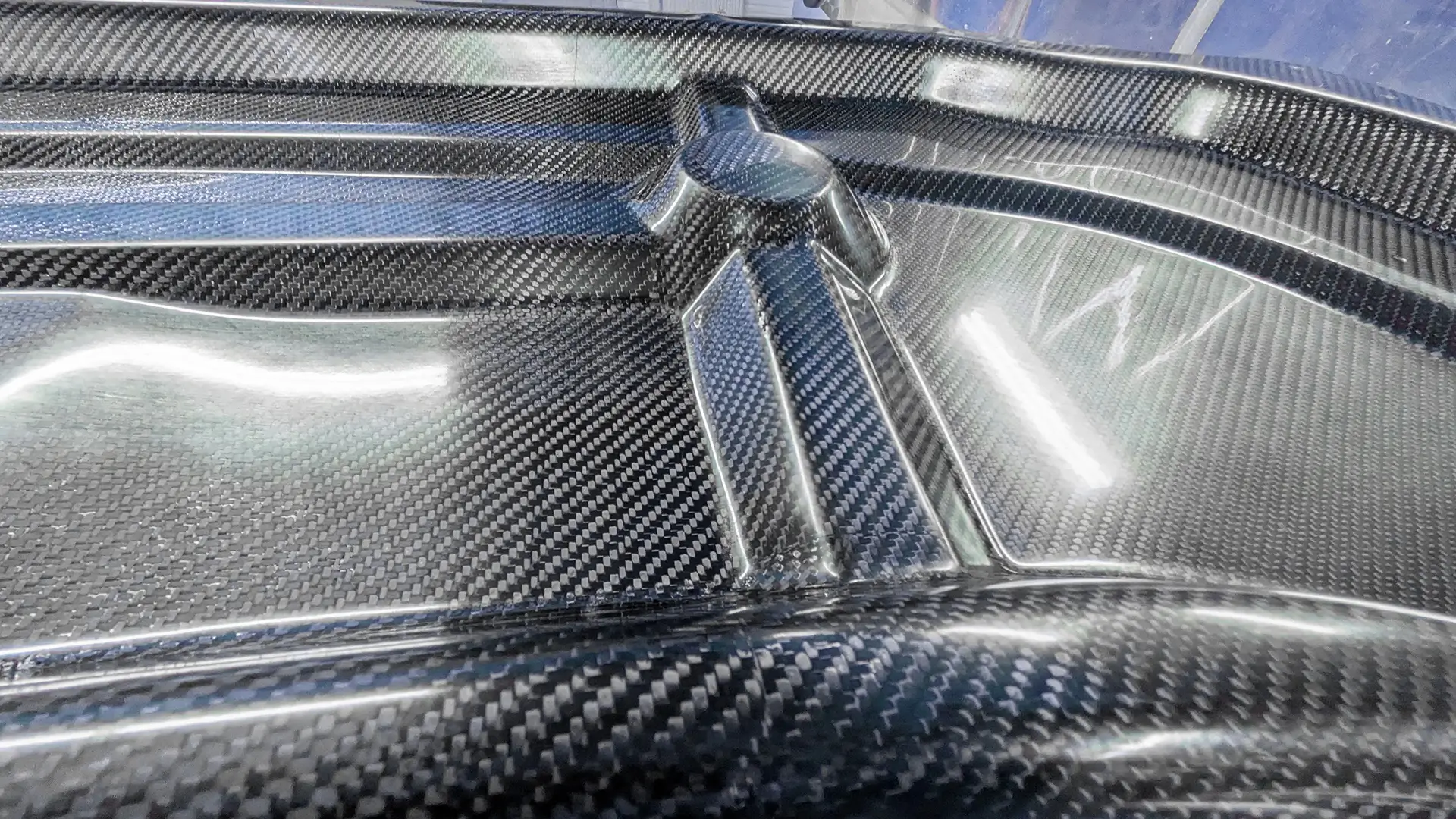

Vacuum bagging significantly improves the strength-to-weight ratio and surface finish compared to hand layup alone.
Advantages of Carbon Fiber Vacuum Bagging
- Reduces air voids and resin pools
- Increases fiber-to-resin ratio
- Results in lighter and stronger parts
- Provides better surface finishes
Disadvantages of Carbon Fiber Vacuum Bagging
- Requires additional equipment (pumps, hoses, bags)
- Adds complexity and cost
- Training is necessary for correct application
When to Use Carbon Fiber Hand Layup and Vacuum Bagging
Choosing carbon fiber hand layup is appropriate for:
- Low-volume production
- Complex shapes needing manual adjustments
- Projects with tight budgets
- Parts where ultimate performance is not critical
Clients seeking affordable prototypes often opt for carbon fiber hand layup for initial testing phases.
Key Considerations for Customer
Clients need to consider these points when planning a custom carbon fiber part:
- Required strength and weight targets
- Appearance quality requirements
- Production volume
- Budget constraints
- Application environment (temperature, stress, exposure)
Discussing these aspects early with the manufacturer ensures that the right combination of hand layup and vacuum bagging is selected.
Typical Workflow of a Carbon Fiber Production Line
A standard carbon fiber hand layup and vacuum bagging production line includes:
- Mold preparation and release coating
- Cutting carbon fiber fabrics
- Dry layup
- Resin impregnation
- Peel ply and breather placement
- Vacuum bagging
- Vacuum pulling and leak check
- Room temperature or elevated curing
- Demolding
- Trimming and finishing
Each step must be meticulously executed to guarantee a high-quality finished product.
Common Defects and Solutions
Even with the best practices, defects can occur. Here are some typical issues and how to fix them:
| Defect | Cause | Solution |
|---|---|---|
| Air Bubbles | Poor layup technique | Improve layup and vacuum process |
| Dry Spots | Insufficient resin | Ensure full impregnation |
| Resin Rich Areas | Uneven resin application | Control resin amount |
| Wrinkles | Incorrect fabric placement | Stretch and align fabrics properly |
Carbon Fiber Hand Layup and Vacuum Bagging FAQs
What is the main difference between hand layup and vacuum bagging?
Hand layup relies solely on manual work and atmospheric pressure, while vacuum bagging uses vacuum pressure to compress the laminate, leading to better quality.
Can I use hand layup without vacuum bagging?
Yes, but the final part might have lower mechanical properties and a less perfect finish compared to vacuum bagging.
Is carbon fiber vacuum bagging more expensive?
Yes, vacuum bagging requires additional equipment and materials, which increases production costs, but it produces higher-quality parts.
How long does it take to complete a carbon fiber hand layup?
It depends on part complexity, but typically a small to medium part can take several hours including curing time.
Is carbon fiber vacuum bagging suitable for all part sizes?
Vacuum bagging is practical for small to medium parts. Extremely large structures may need specialized vacuum systems.
